Details
PCIe to MiniPCIe slot, Gigabit Ethernet, and USB 3.2 Gen1 ports
Designed for Raspberry Pi 5, driver-free, plug and play
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, front view](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-1.jpg)
![PCIe TO MiniPCIe GbE USB3.2 HAT+](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-3-1.jpg)

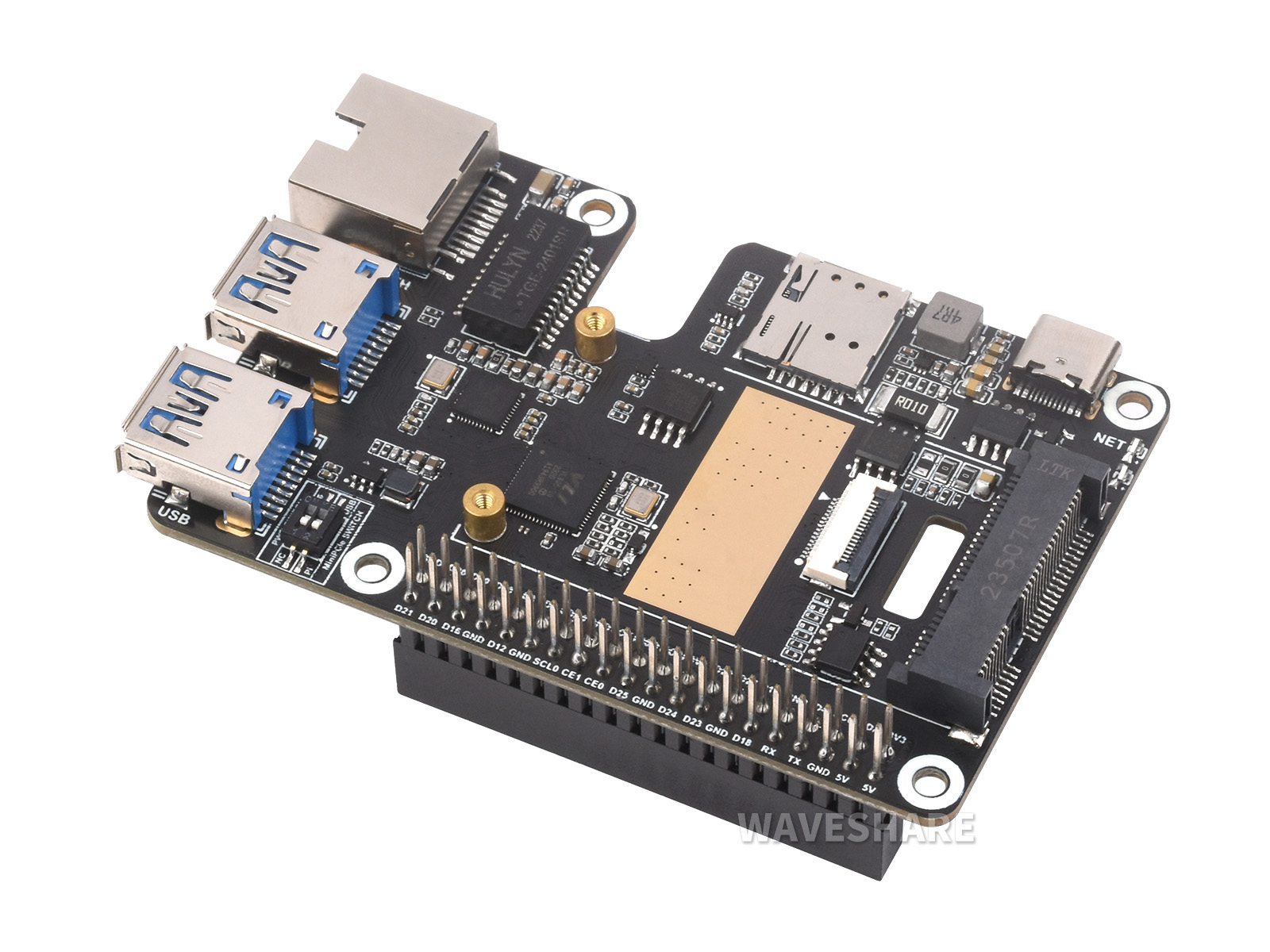

PCIe TO MiniPCIe GbE USB3.2 HAT+
the PCIe HAT + accessories
![SIM7600G-H 4G GbE USB3.2 HAT+](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-3-3.jpg)
SIM7600G-H 4G GbE USB3.2 HAT+
PCIe HAT + SIM7600G-H-PCIE module + accessories
![EG25-G 4G GbE USB3.2 HAT+](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-3-2.jpg)
EG25-G 4G GbE USB3.2 HAT+

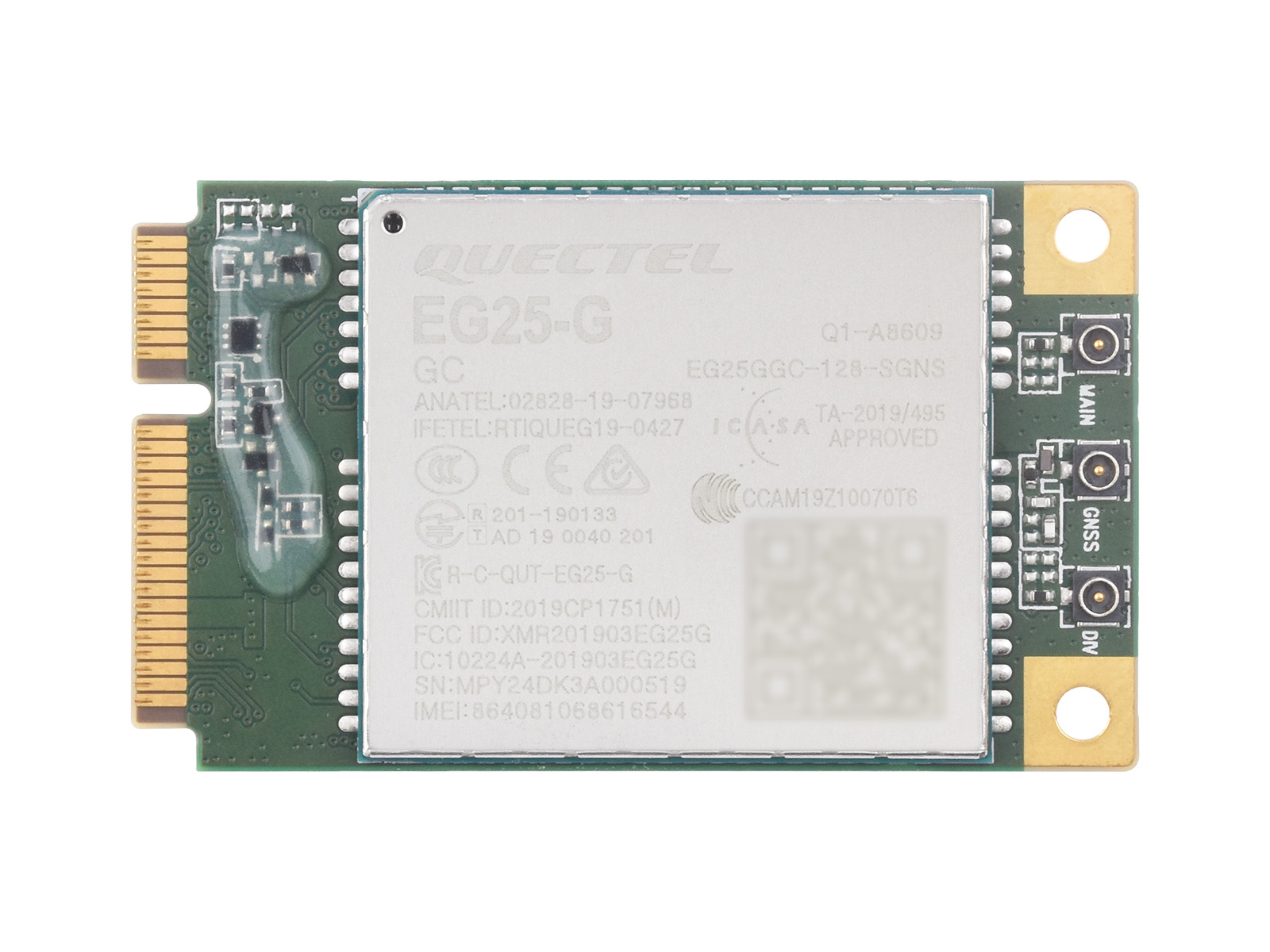

PCIe HAT + EG25-G-mPCIe module + accessories
Onboard MiniPCIe slot, Compatible with SIM7600G-H-PCIE / EG25-G-mPCIe series 4G modules
4G module | SIM7600G-H-PCIE | EG25-G-mPCIe |
---|---|---|
![]() |
![]() |
|
Frequency band | ||
LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
LTE-TDD | B34, B38, B39, B40, B41 | B38, B39, B40, B41 |
WCDMA | B1, B2, B4, B5, B6, B8, B19 | |
GSM | 850, 900, 1800, 1900 MHz | |
GNSS | GPS, Beidou, GLONASS, GALILEO, QZSS | Data Transfer |
LTE-FDD | 150 Mbps (DL) / 50 Mbps (UL) | |
LTE-TDD | 130 Mbps(DL) / 35 Mbps(UL) | 130 Mbps(DL) / 30 Mbps(UL) |
HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) | |
WCDMA | 384 Kbps (DL) / 384 Kbps (UL) | |
EDGE | 236.8 Kbps (DL) / 236.8 Kbps (UL) | 296 Kbps (DL) / 236.8 Kbps (UL) |
GPRS | 85.6 Kbps (DL) / 85.6 Kbps (UL) | 107 Kbps (DL) / 85.6 Kbps (UL) | Software Features |
Operating system | Windows / Linux / Android | |
Communication protocols | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS | TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE |
SMS | Supports MT, MO, CB, Text, PDU | |
Firmware upgrade | USB/FOTA | USB/DFOTA | Hardware Specifications |
SIM card | 1.8V / 3.0V | |
Antenna interface | IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) | |
Power supply | 3V ~ 3.6V | |
Form factor | Mini-PCIe | |
Dimensions | 50.8 × 31.0 × 5.5 mm | 51.0 × 30.0 × 4.9 mm |
Operating temperature | -40℃ ~ +80℃ | Applications |
Applicable regions | global coverage | |
Note: The 4G module is optional, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module. |

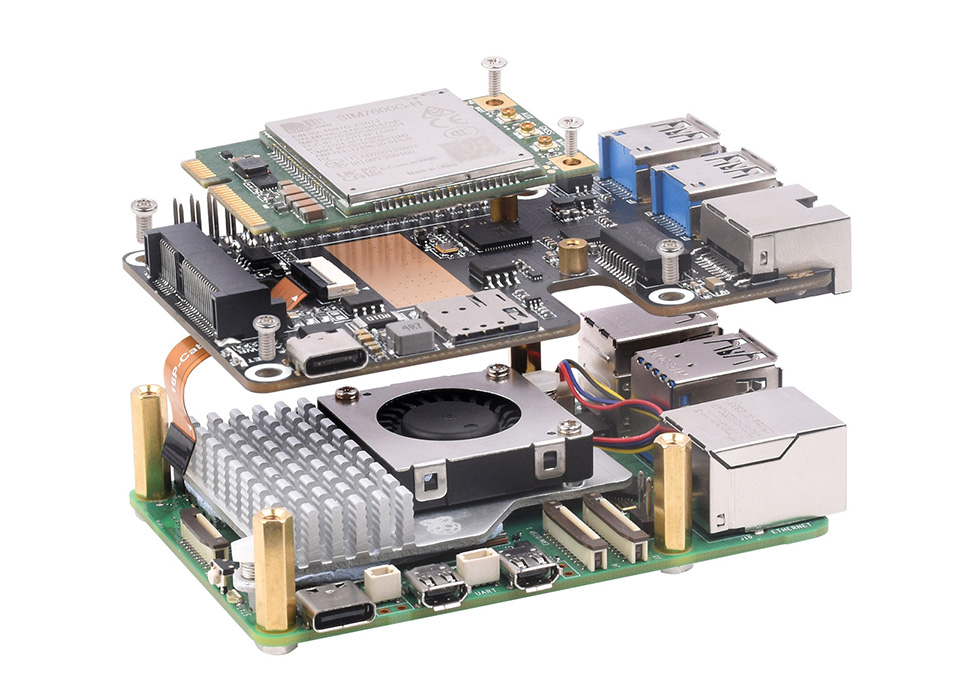

Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, connecting to Raspberry Pi 5](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-5.jpg)
* for reference only, please refer to the Package Content for detailed part list
Extends The PCIe Interface To 2x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, extends 2x high speed USB 3.2 Gen1 ports](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-7.jpg)
* for reference only, please refer to the Package Content for detailed part list
Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, extends 1x Gigabit Ethernet port](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-9.jpg)
Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable
and reliable network speed
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, network speed measurement](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-11.jpg)
Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, multi-system support](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-13.jpg)
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)
2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink)
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, global band 4G / 3G / 2G support](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-14-1.jpg)
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, supports GNSS positioning](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-14-2.jpg)
Real-time monitoring of power status, supports USB port power control via software
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5 with onboard power monitoring chip and EEPROM](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-15.jpg)
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT, onboard components](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-intro.jpg)
- RTL8153B
USB to Gigabit ETH - VL805
PCIe to USB 3.2 Gen1 HUB chip - INA219
Power monitoring chip - EEPROM
for saving HAT ID and product information - Raspberry Pi GPIO header
for connecting Raspberry Pi 5 - MiniPCIe slot
for connecting the 4G module with MIniPCIe interface - 16PIN PCIe interface
for connecting to the PCIe interface of Raspberry Pi 5
- Type-C interface
for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input - Nano SIM card slot
for installing Nano-SIM card - Gigabit Ethernet port
up to 1000Mbps data rate, compatible with 100Mbps - USB 3.2 Gen1 expanded ports
USB1~USB2 - DIP switchs
for switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction - NET indicator
Module Network status indicator - PWR indicator
Power indicator
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, pinout definition](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-inter.jpg)
Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, application scenarios](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-19.jpg)
![PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, outline dimensions](/img/devkit/accBoard/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus/PCIe-TO-MiniPCIe-GbE-USB3.2-HAT-Plus-details-size.jpg)
Product Model | Extended Interface | PCIe Version | mounting solution | Power monitoring | features |
---|---|---|---|---|---|
![]() PCIe TO M.2 Board (D) |
M.2_M_KEY | PCIe ×1 Gen2/3 | on top | NVME, 2280 | |
![]() PCIe TO 2-CH M.2 HAT+ (B) |
M.2_M_KEY × 2 | PCIe ×1 Gen2 | HAT+ | √ | 2-ch NVME, 2280 |
![]() PCIe TO 2-CH M.2 HAT+ |
M.2_M_KEY × 2 | PCIe ×1 Gen2 | HAT+ | √ | 2-ch NVME, 2242 |
![]() PCIe TO M.2 HAT+ |
M.2_M_KEY | PCIe ×1 Gen2/3 | HAT+ | √ | NVME, 2242 |
![]() PCIe TO M.2 MINI |
M.2_M_KEY | PCIe ×1 Gen2/3 | on top | NVME, 2242, compact size | |
![]() PCIe TO M.2 Board (C) |
M.2_M_KEY | PCIe ×1 Gen2/3 | on side | NVME, 2280, side-mounting | |
![]() PCIe TO Gigabit ETH Board (C) |
Gigabit ETH | PCIe ×1 Gen2 | on side | Gigabit ETH port, side-mounting | |
![]() PCIe TO 4G/5G M.2 USB3.2 HAT+ |
M.2_B_KEY, USB3.2 × 3 | PCIe ×1 Gen2 | HAT+ | √ | supports 4G/5G modules, expanded USB3.2 ports |
![]() PCIe TO USB 3.2 Gen1 Board (C) |
USB3.2 × 4 | PCIe ×1 Gen2 | on side | expanded USB3.2 ports, side-mounting | |
![]() PCIe TO USB 3.2 Gen1 HAT+ |
USB3.2 × 4 | PCIe ×1 Gen2 | HAT+ | √ | expanded USB3.2 ports |
![]() PCIe TO Gigabit ETH USB3.2 HAT+ |
USB3.2 × 3, Gigabit ETH | PCIe ×1 Gen2 | HAT+ | √ | expanded USB3.2 ports and Gigabit ETH port |
![]() PCIe TO MiniPCIe GbE USB3.2 HAT+ |
USB3.2 × 2, MiniPCIe, Gigabit ETH | PCIe ×1 Gen2 | HAT+ | √ | expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port |
![]() RM520N-GL 5G HAT+ |
M.2_B_KEY | PCIe ×1 Gen2 | HAT+ | √ | access to 5G networking via PCIe interface, multiple 5G modules compatible |
Quick Overview
PCIe TO MiniPCIe GbE USB3.2 HAT+
- PCIe TO MiniPCIe GbE USB3.2 HAT+ x1
- 16P-Cable-40mm cable x1
- Network cable ~1.5m x1

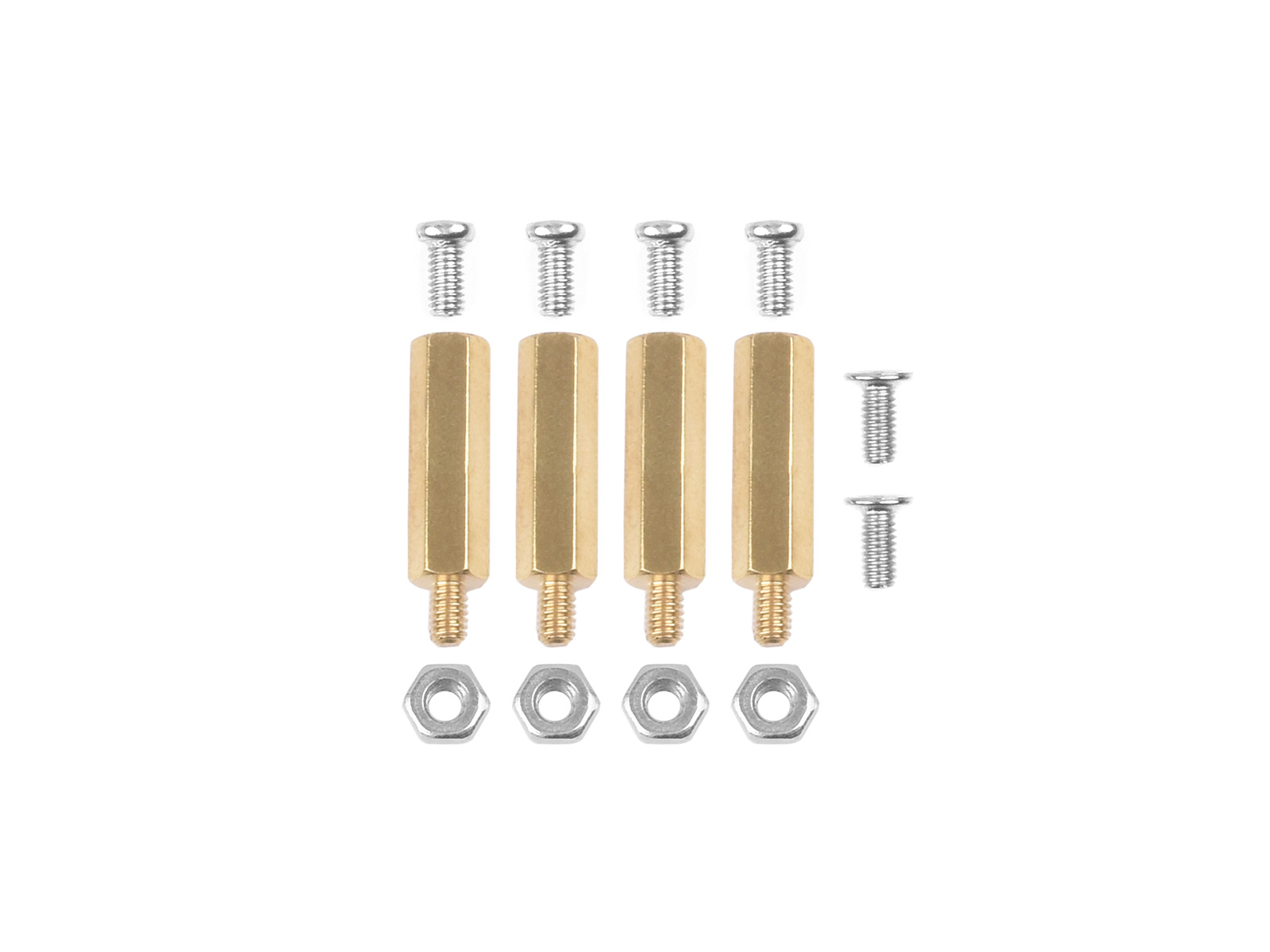

- Screws pack x1
SIM7600G-H 4G GbE USB3.2 HAT+
- PCIe TO MiniPCIe GbE USB3.2 HAT+ x1

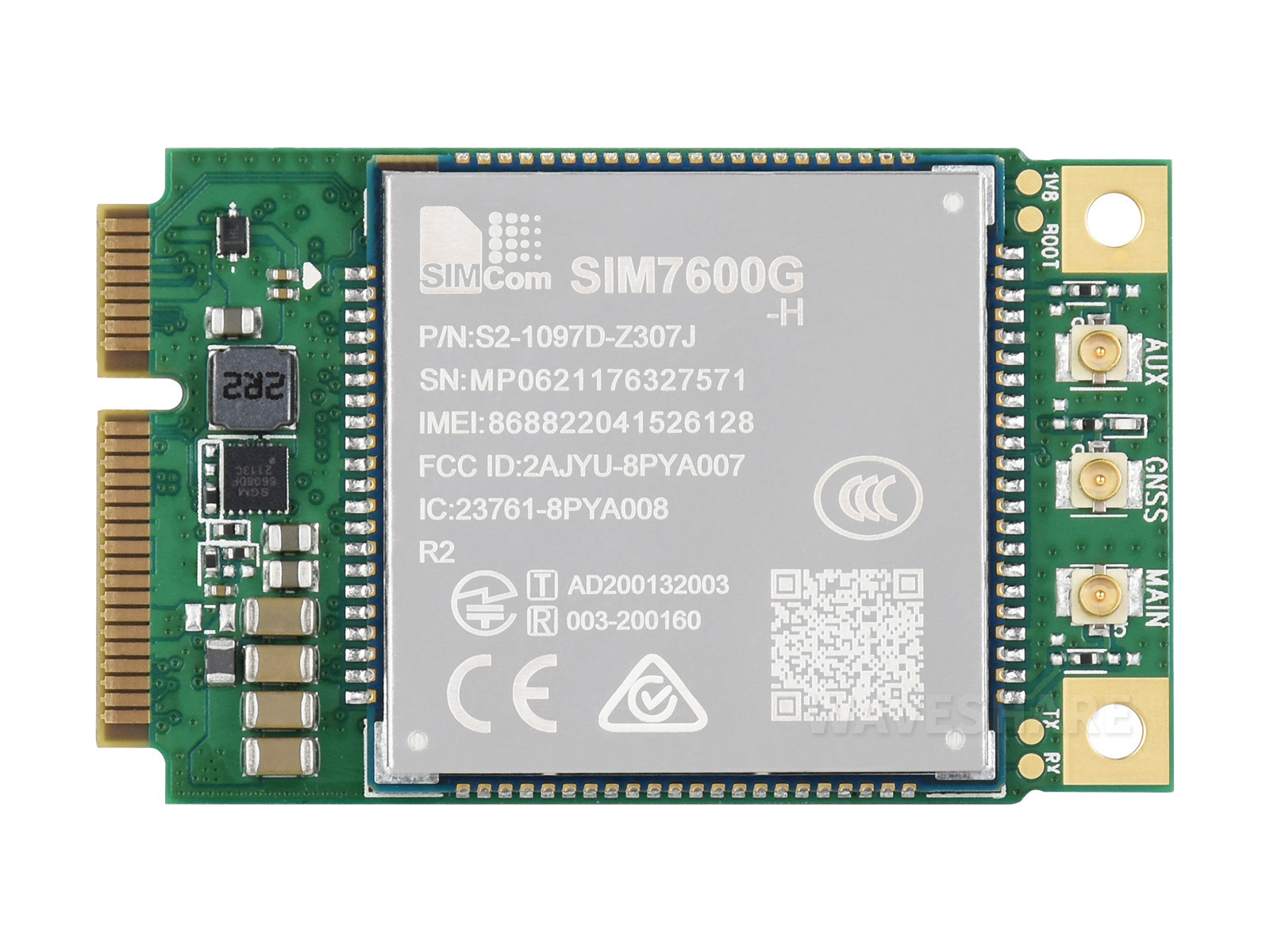

- SIM7600G-H-PCIE x1
- 16P-Cable-40mm cable x1
- Network cable ~1.5m x1
- Screws pack x1
- Antenna 2pcs x1

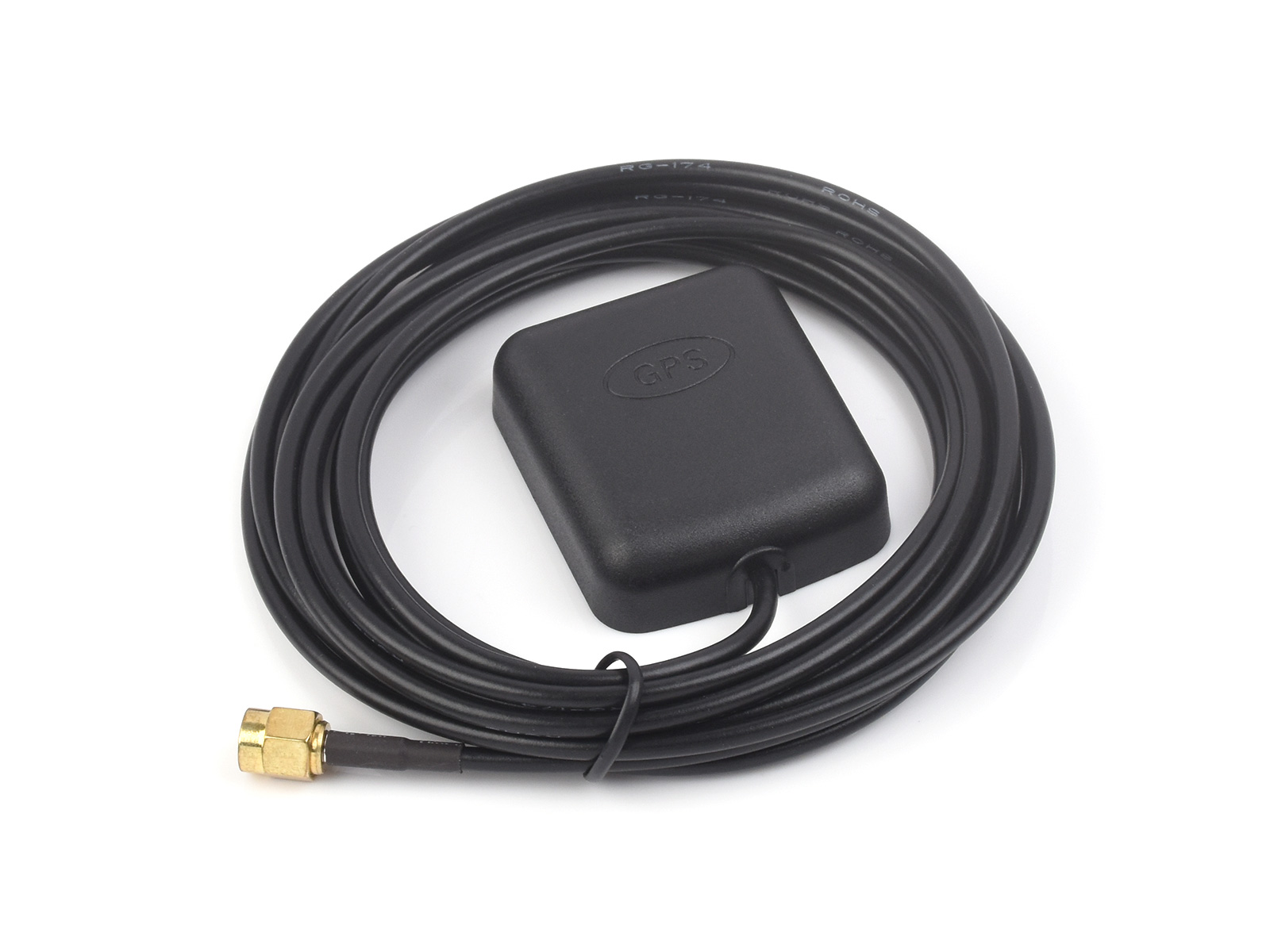

- Passive GPS antenna x1
- SMA to IPEX-1 cable 3pcs x1
