PCIe To ETH And M.2 Adapter for Raspberry Pi 5, Compatible with 2280 / 2260 / 2242 / 2230 size NVMe M.2 SSD, 5Gbps Data Rate, High-speed Reading/Writing, Raspberry Pi 5 NVMe HAT

SKU:28515
Part No.:PCIe TO ETH M.2 HAT+
Brand:Waveshare

$21.99
PriceQuantity
$21.192+
$20.793+
$20.634+
Description

Details

PCIe To ETH And M.2 Adapter for Raspberry Pi 5, Compatible with 2280 / 2260 / 2242 / 2230 size NVMe Protocol M.2 SSD, 5Gbps Data Rate, High-speed Reading/Writing, Raspberry Pi 5 NVMe HAT
PCIe To ETH And M.2 Adapter

Designed for Raspberry Pi 5, driver-free, plug and play

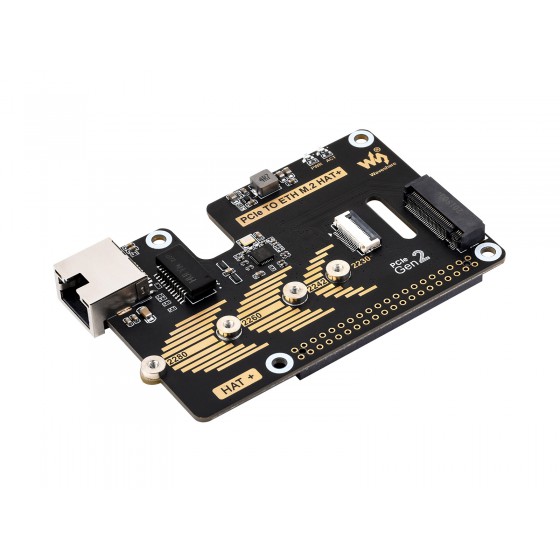

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, front view and features

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list


NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports Gen2 standard, Supports Booting PI5 From Solid State Drive

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drive

NVMe Drive Slot Support

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, NVMe Drive slot support

Note: Only supports the NVMe Protocol Solid State Drives.


Adopts Immersion Gold Process

Better appearance | Anti-oxidation | Anti-corrosion | Strong welding

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, adopts anti-Oxidation Immersion Gold Process
Extends 1x Gigabit Ethernet port

Equipped with RTL8111H high-performance Gigabit ETH chip, adopts sinking design of network port, neat and beautiful

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, extends to 1x Gigabit Ethernet port
Improves reading/writing speed of your Pi

Faster reading/writing speed compared to the TF card slot of Raspberry Pi , greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive.

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, improves reading/writing speed

* for reference only, please refer to the Package Content for detailed part list


Onboard Dual LED Indicators

Easy to monitor the Working Status

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, onboard dual LED indicators

Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of Solid State Drive power status for More Stable operation

PCIe To ETH and M.2 Adapter for Raspberry Pi 5, onboard power monitoring chip and EEPROM


how to install
PCIe To ETH and M.2 Adapter for Raspberry Pi 5, how to install


Outline dimensions
PCIe To ETH and M.2 Adapter for Raspberry Pi 5, outline dimensions
Resources & Services
PCIe adapter board selection
Product Model Extended Interface PCIe Version mounting solution Power monitoring features

PCIe TO M.2 Board (D)
M.2_M_KEY PCIe ×1 Gen2/3 on top NVME, 2280

PCIe TO 2-CH M.2 HAT+ (B)
M.2_M_KEY × 2 PCIe ×1 Gen2 HAT+ 2-ch NVME, 2280

PCIe TO 2-CH M.2 HAT+
M.2_M_KEY × 2 PCIe ×1 Gen2 HAT+ 2-ch NVME, 2242

PCIe TO M.2 HAT+
M.2_M_KEY PCIe ×1 Gen2/3 HAT+ NVME, 2242

PCIe TO M.2 MINI
M.2_M_KEY PCIe ×1 Gen2/3 on top NVME, 2242, compact size

PCIe TO M.2 Board (C)
M.2_M_KEY PCIe ×1 Gen2/3 on side NVME, 2280, side-mounting

PCIe TO Gigabit ETH Board (C)
Gigabit ETH PCIe ×1 Gen2 on side Gigabit ETH port, side-mounting

PCIe TO 4G/5G M.2 USB3.2 HAT+
M.2_B_KEY, USB3.2 × 3 PCIe ×1 Gen2 HAT+ supports 4G/5G modules, expanded USB3.2 ports

PCIe TO USB 3.2 Gen1 Board (C)
USB3.2 × 4 PCIe ×1 Gen2 on side expanded USB3.2 ports, side-mounting

PCIe TO USB 3.2 Gen1 HAT+
USB3.2 × 4 PCIe ×1 Gen2 HAT+ expanded USB3.2 ports

PCIe TO Gigabit ETH USB3.2 HAT+
USB3.2 × 3, Gigabit ETH PCIe ×1 Gen2 HAT+ expanded USB3.2 ports and Gigabit ETH port

PCIe TO MiniPCIe GbE USB3.2 HAT+
USB3.2 × 2, MiniPCIe, Gigabit ETH PCIe ×1 Gen2 HAT+ expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port

RM520N-GL 5G HAT+
M.2_B_KEY PCIe ×1 Gen2 HAT+ access to 5G networking via PCIe interface, multiple 5G modules compatible

PoE M.2 HAT+
M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2242

PoE M.2 HAT+ (B)
M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2280

PCIe TO ETH M.2 HAT+
M.2_M_KEY, Gigabit ETH PCIe ×1 Gen2 HAT+ with Gigabit ETH port, NVME, 2280

Weight: 0.045 kg

Quick Overview

  1. PCIe TO ETH M.2 HAT+ x1
  2. 2*20 Pin header x1
  3. 16P-Cable-40mm x1
  4. Screws pack x1
  5. SSD mounting screw x1
PCIe TO ETH M.2 HAT+
