- Description
Details
Intel 12th Generation Alder Lake-U Series Processor
Suitable for electronic whiteboard/digital signage/advertising
machine/touch all-in-one Devices, etc.
| Model | OPS-I5-1135G7 | OPS-I7-1165G7 | OPS-I5-1235U | OPS-I7-1255U |
|---|---|---|---|---|
| Processor | i5-1135G7 | i7-1165G7 | i5-1235U | i7-1255U |
| Intel 11th Generation Processor | Intel 12th Generation Processor | |||
| TPM2.0 | Built in the CPU by default, customizable for external TPM2.0 | |||
| RAM | 1 × DDR4 SO-DIMM slot, 8GB memory by default, customizable for 32GB memory | 1 × DDR5 SO-DIMM slot, 8GB memory by default, customizable for 32GB memory | ||
| Storage | 1 × M.2 M-Key 2280 slot, comes with 256GB M.2 Solid State Drive, supports NVMe PCIe 3.0 x4 protocol by default, customizable for SATA3.0 protocol | |||
| 1 × 2.5inch HDD interface; 1 × SATA3.0 interface, 2Pin5V | ||||
| Display | 1 × HDMI2.0 interface, supports 4096×2160@60hz; | |||
| 1 × Mini DP port, supports 4096×2160@60hz; | ||||
| 1 × Type-C port, supports USB3.2 and DP4K@60Hz; | ||||
| Supports synchronous or asynchronous display | ||||
| Network | 1 × LAN port (RTL8111 network controller by default, customizable for Intel i219) | |||
| 1 × M.2 E-Key interface (comes with Intel 7260NGW module by default, supports WIFI/BT) | ||||

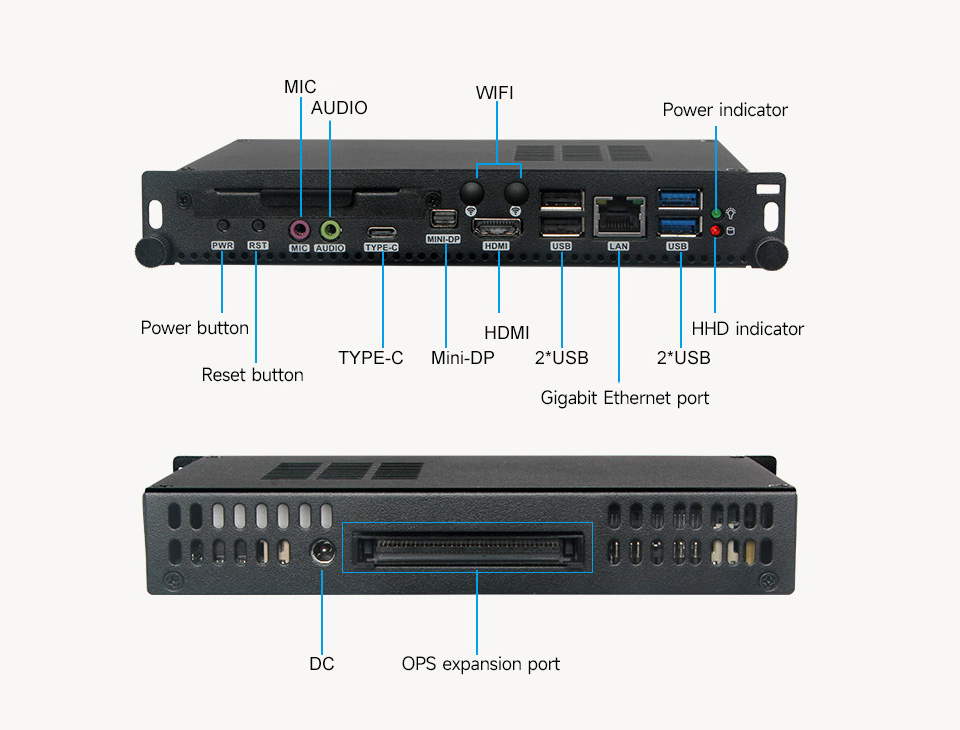

| Onboard Resources | 1 × LAN, 1 × Mini DP, 1 × HDMI2.0, 2 × USB3.0, 2 × USB2.0 | |||
| 1 × Type-C, 1 × Mic-in, 1 × Line-out, 1 × DC JACK power port | ||||
| 2 × WiFi antenna connectors, 1 × Power button, 1 × Reset button, 1 × HDD indicator, 1 × Power indicator | ||||
| JAE 80Pin Interface expansion | HDMI2.0/DP1.4 output, automatic identification and switching | |||
| 2 × USB2.0, 1 × USB3.0, 1 × TTL | 2 × USB2.0, 1 × USB3.0, 1 × RS232 | |||
| System Support | Windows 10/11, Linux | |||
| Power supply * | DC 12~19V, more than 90W | DC 12-19V, more than 120W | ||
* Note: the power supply of this product is not included, feel free to contact us if you need to purchase

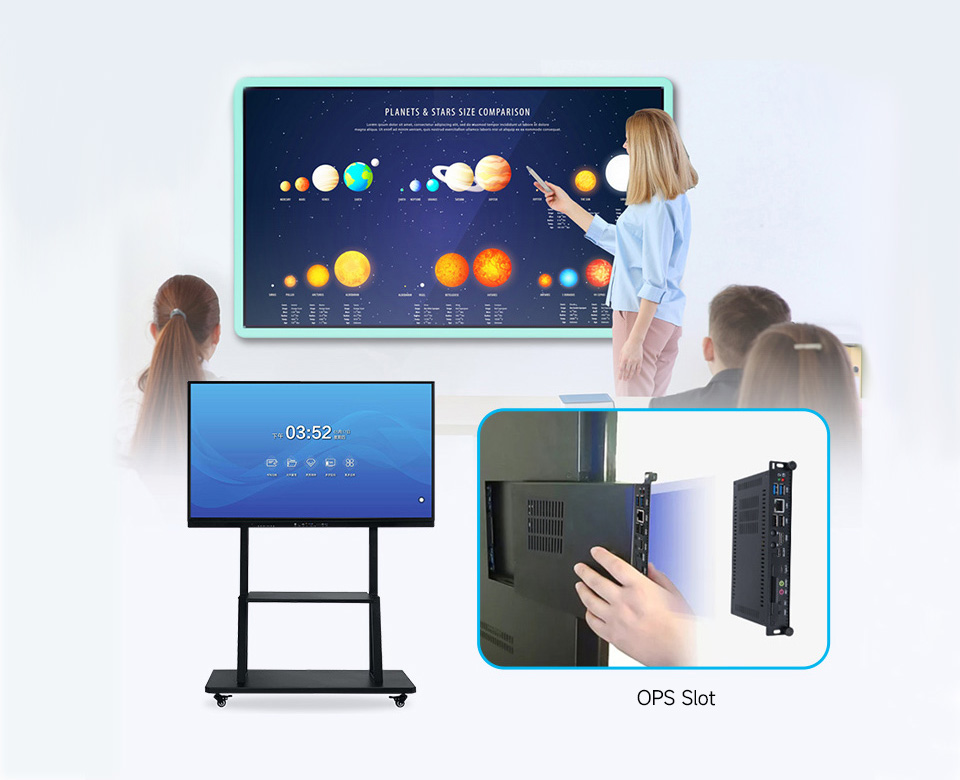

Designed for Teaching All-in-one Computer / Electronic Whiteboard / Conference Tablets. Plug And Play, No Additional Wiring is Required. Easier to Install and Use, Suitable for digital signal maintenance
Adopts Intel Core Alder Lake-U series processor, suitable for most application scenarios
Mini DP + HDMI Interfaces Support
Supports dual display or independent 4K output, meeting various application needs

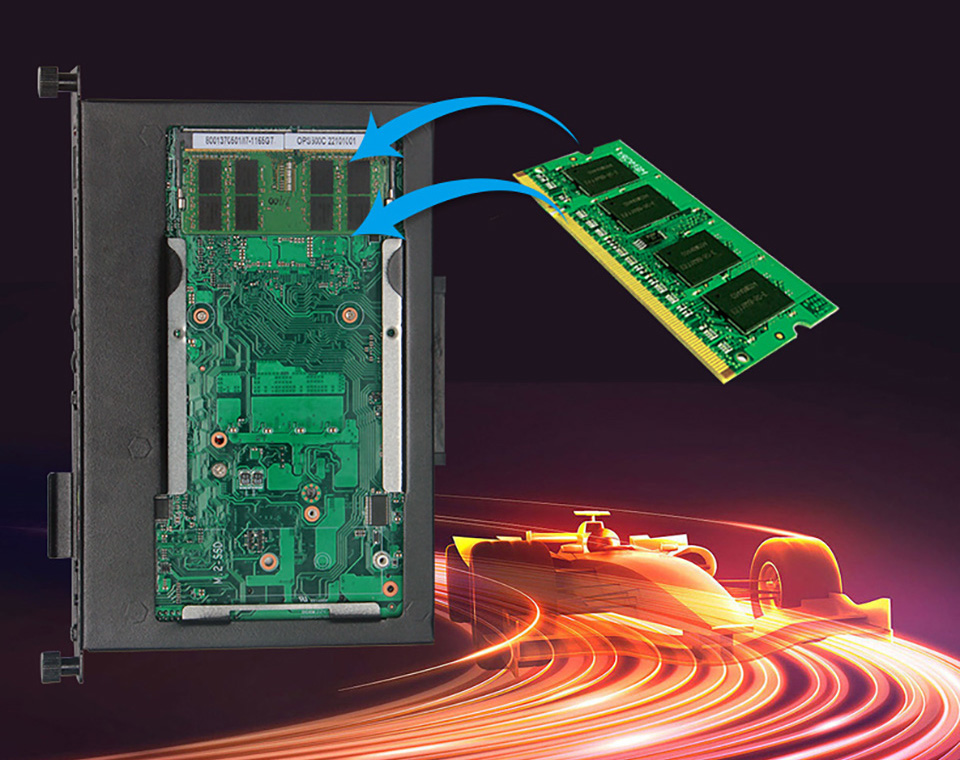

Onboard 1 × DDR5 SO-DIMM slot, Comes with 8GB memory by default, customizable for 32GB. Faster speed in storage, response, and transmission
Onboard M.2 M-Key 2280 slot, supports NVMe PCle 3.0 x4 protocol by default, faster than the general SATA solid state drives or mechanical hard drives
Supports stable operation for 7×24 hours without downtime or lags, saving more maintenance costs
Designed for home/office/business/teaching/conference all-in-one devices
Quick Overview
OPTIONS OPS-I5-1235U-08256 / OPS-I7-1255U-08256 x1
