Open32F3-D Standard, STM32F3 Development Board

SKU:7033
Part No.:Open32F3-D Standard
Brand:Waveshare

$21.99 DISCONTINUED
PriceQuantity
$21.292+
$20.793+
$20.494+
Description

Details

STM32 development board designed for the ST official tool STM32F3DISCOVERY, and integrates various standard interfaces, pretty easy for peripheral expansions.
STM32F303VCT6 development board

Overview

Open32F3-D is an STM32 development board designed for the ST official tool STM32F3DISCOVERY, which features the STM32F303VCT6 microcontroller onboard.

The Open32F3-D supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F3 series microcontrollers.


What's on the mother board

STM32F303VCT6 development board on board resource
  1. STM32F3DISCOVERY socket: for easily connecting the STM32F3DISCOVERY
  2. ZigBee interface: for connecting ZigBee modules such as CC2530 module.
  3. USART2 interface: easily connects to RS232, RS485, USB TO 232, etc.
  4. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  5. 8I/Os interface: for connecting accessory boards such buttons, motors, etc.
  6. SPI1 / SPI2 + DAC + ADC interfaces:
    • easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc.
    • easily connects to AD/DA modules
  7. Humidity sensor socket: for connecting humidity sensor such as HS1101LF, etc.
  8. I2S / I2C1 interface: easily connects to I2S peripherals such as audio module, etc.
  9. LCD connector: for connecting touch screen LCD
  10. CAN interface: communicates with accessory boards which feature the CAN device conveniently
  11. PS/2 interface: easily connects to PS/2 keyboard and/or mouse
  12. I2C1 / I2C2 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), FRAM (FM24CLxx), etc.
  13. Resistive sensor socket: for connecting resistive sensor such as photoresistor, etc.
  14. USART1 interface: easily connects to RS232, RS485, USB TO 232, etc.
  15. 5V DC jack
  16. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  17. MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion
  18. STM32-JTAG/SWD interface: for STM32 debugging/programming
  19. ZigBee-JTAG interface: for ZigBee debugging/programming
  20. Power switch
  21. Boot mode switch: for configuring BOOT0 pin
  22. Joystick jumper
    • short the jumper to connect the joystick to default I/Os used in example code
    • open the jumper to connect the joystick to custom I/Os via jumper wires
  23. PS/2 interface jumper
    • short the jumper to connect the PS/2 devices to default I/Os used in example code
    • open the jumper to connect the PS/2 devices to custom I/Os via jumper wires
  24. LDR jumper
    • short the jumper to use resistive sensor, certain I/Os are required
    • open the jumper to disconnect from the I/Os
  25. Humidity jumper
    • connect the left two pins to retrieve data from capacitive sensor
    • connect the right two pins to retrieve data from 180p capacitor (for testing)
  26. Power indicator
  27. Joystick: five positions
  28. ZigBee reset

What's on the STM32F3DISCOVERY

STM32F3DISCOVERY on board resource
  • STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package
  • On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
  • Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope
  • LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
  • Ten LEDs:
    • LD1 (red) for 3.3 V power on
    • LD2 (red/green) for USB communication
    • Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
  • Two pushbuttons (user and reset)
  • USB USER with Mini-B connector
  • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

Photos

STM32 Development Board

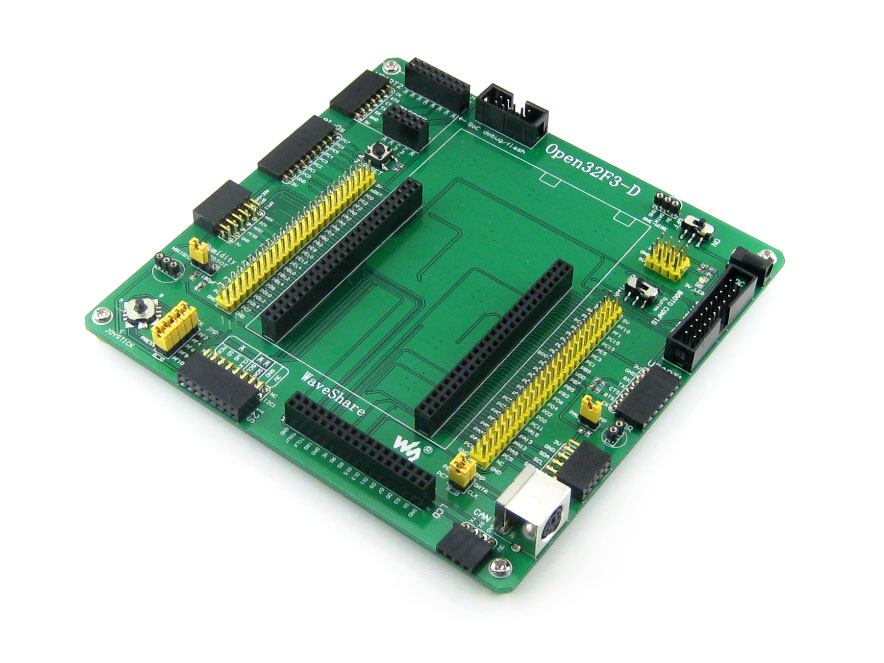

Open32F3-D development board
STM32 Development Board

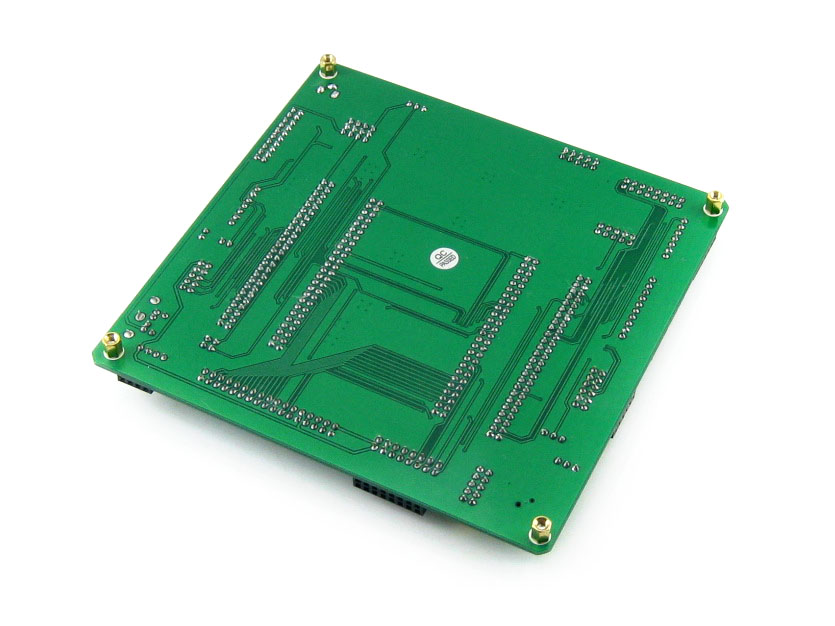

Open32F3-D development board back view
STM32 Development Board

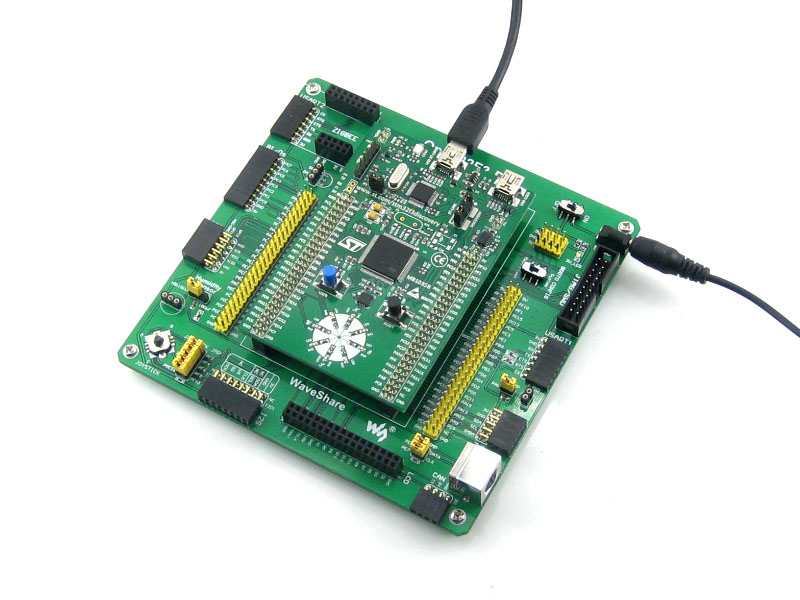

Open32F3-D Programming
STM32 Development Board
Connecting to various peripherals

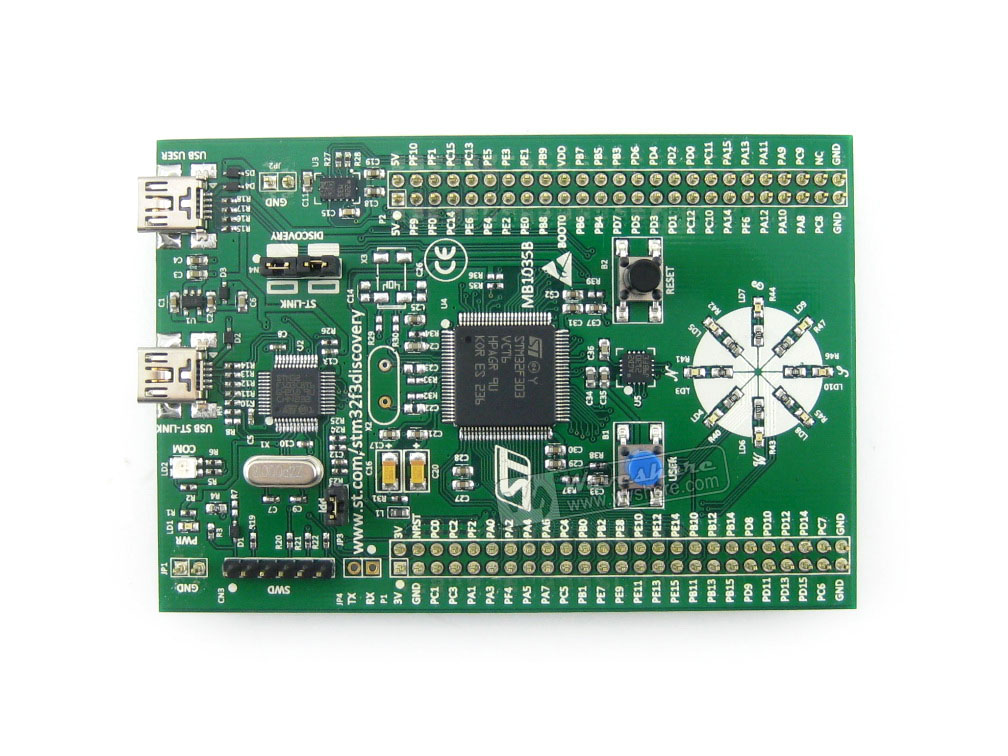

STM32 Cortex-M4 STM32F3DISCOVERY
STM32 Cortex-M4 MCU board

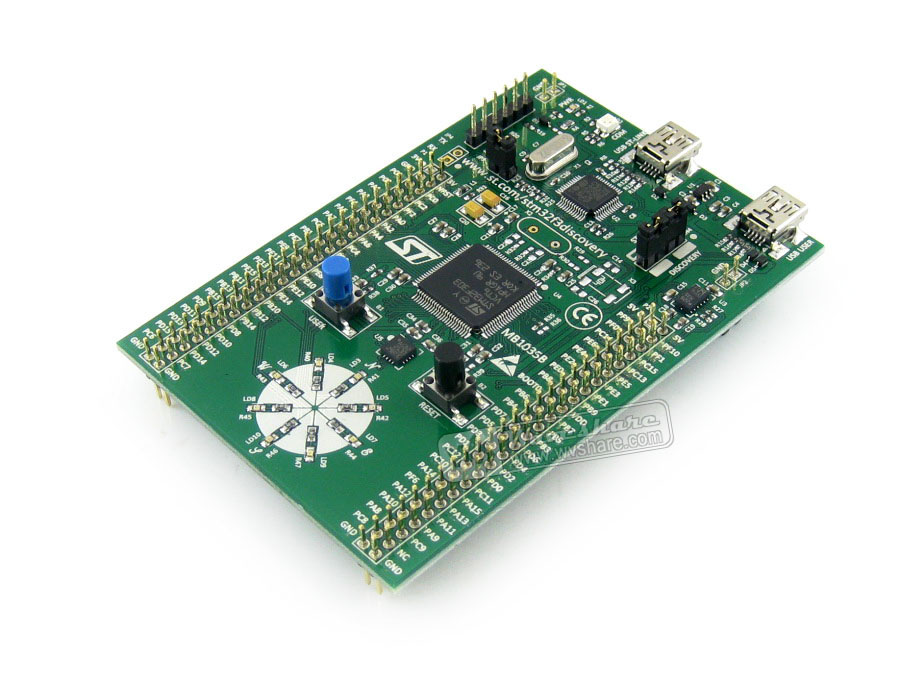

STM32 Cortex-M4 STM32F3DISCOVERY
STM32 Cortex-M4 MCU board

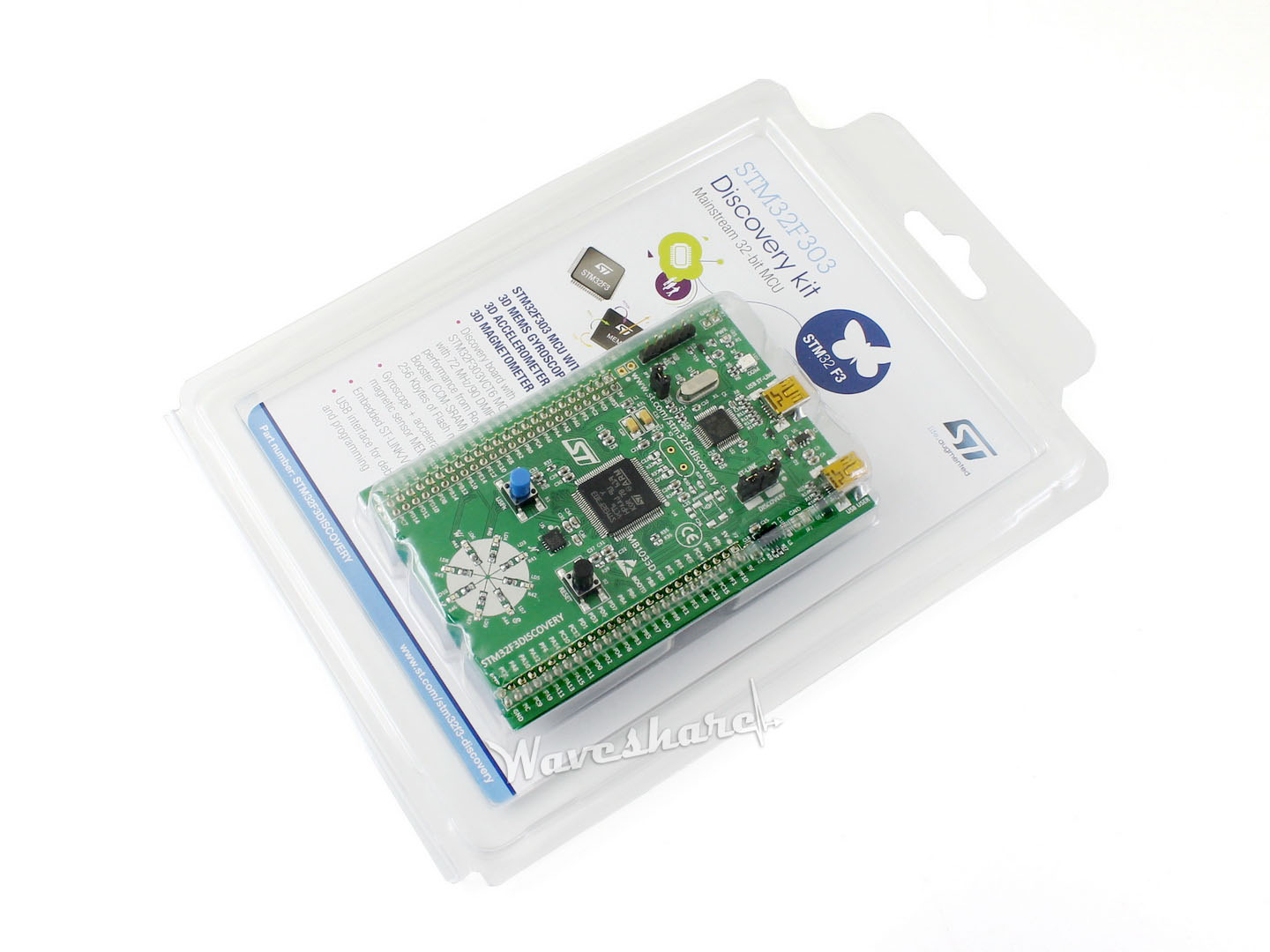

STM32 Cortex-M4 STM32F3DISCOVERY
STM32 Cortex-M4 MCU board

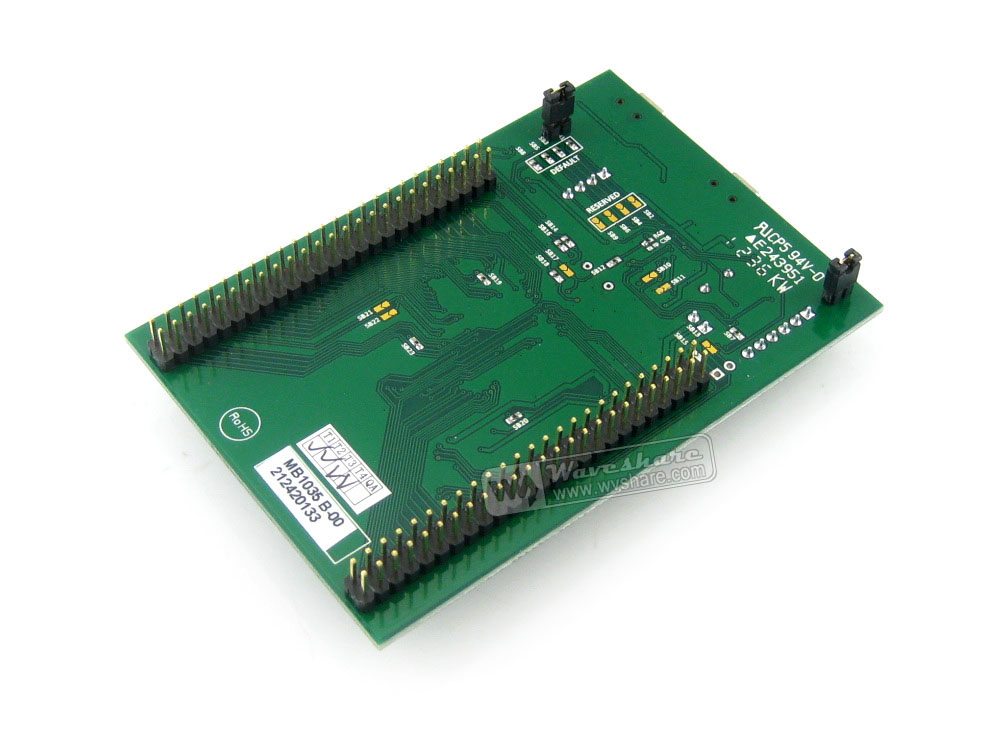

STM32 Cortex-M4 STM32F3DISCOVERY
STM32 Cortex-M4 MCU board

Open32F3-D μC/OS-II (Ⅰ)

Open32F3-D μC/OS-II (Ⅱ)

Open32F3-D μC/OS-II (Ⅲ)

Open32F3-D μC/OS-II (Ⅳ)
RS232 Board
Connecting to RS232 Board
RS485 Board
Connecting to RS485 Board
PL2303 USB UART Board mini
Connecting to USB UART Board
8 Push Buttons
Connecting to 8 Push Buttons
5 IO Keypad
Connecting to 5 IO Keypad
AD Keypad
Connecting to AD Keypad
Analog Test Board
Test Board on the AD/DA port
FM24CLXX FRAM Board
Connecting to FRAM Board
I2C cascading x3
Multi I2C peripheral Module connected to the I2C bus
AT45DBXX DataFlash Board
Connecting to DataFlash Board
WM8960 Audio Board
Connecting to audio Board
VS1003B MP3 Board
Connecting to VS1003B MP3 Board
NRF24L01 RF Board
Connecting to NRF24L01 RF Board
Micro SD Storage Board
Connecting to Micro SD Storage Board
SN65HVD230 CAN Board
Connecting to CAN Board
Connecting to any accessory board
Connecting to any accessory board you need


Note:
The Open32F3-D Standard does not include STM32F3DISCOVERY, nor any other accessory board.


JTAG/SWD interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout
JTAG Header Pinout
Figure 2. SWD Header Pinout
SWD Header Pinout

Development Resources

  • Related software (KEIL etc.)
  • Demo code (examples in C, μC/OS-II)
  • Schematic (PDF)
  • STM32 development documentations (Datasheet etc.)

Wiki: www.waveshare.com/wiki/Open32F3-D

Weight: 0.169 kg

Quick Overview

  1. Open32F3-D mother board x 1
  2. 4-pin wire x 2
  3. 2-pin wire x 2
  4. USB power cable x 1
  5. Software CD x 1
