STM32 development board designed for STM32F103V series, features the STM32F103VET6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

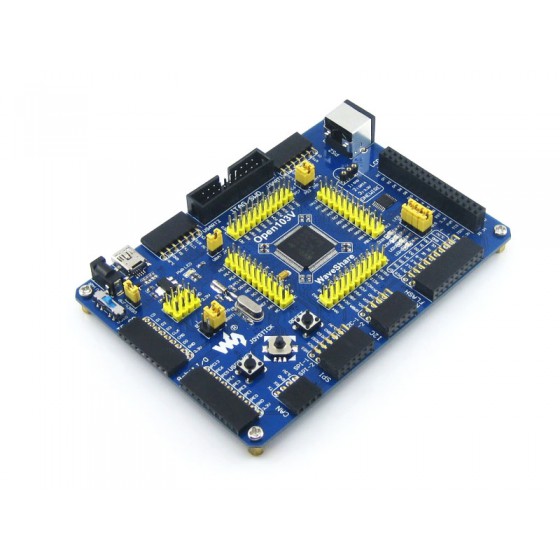

STM32F103VET6 development board

Overview

Open103V is a STM32 development board that features a STM32F103VET6 device as the microcontroller. It supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F family.

Note: Open103V Standard includes only ONE accessory board -- PL2303 USB UART Board (mini).


What's On Board

STM32F103VET6 development board on board resource
  1. STM32F103VET6:the high performance STM32 MCU in LQFP100 package which features
    • Core: ARM Cortex-M3 32-bit RISC;
    • Operating Frequency: 72MHz, 1.25 DMIPS/MHz;
    • I/Os: 80;
    • Operating Voltage: 2-3.6V;
    • Memories: 512K Flash, 64K RAM (the highest specification in STM32F103V series);
    • Communication Interfaces: 3xSPI, 5xUSART, 2xI2S, 2xI2C, 1xFSMC, 1xLCD, 1xSDIO, 1xUSB, 1xCAN;
    • AD & DA converters: 3xAD (12bit, 1μs, shares 16 channels); 2xDA (12bit);
    • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP;
  2. 74LVC139: for FSMC expansion, makes it possible to connect multi peripherals through FSMC at the same time, such as connecting a LCD and a NAND FLASH;
  3. AMS1117-3.3: 3.3V voltage regulator;
  4. Power supply switch: 5V DC or USB;
  5. Power indicator;
  6. LEDs: Convenient for indicating I/O status or program debugging running state;
  7. Reset button;
  8. User key;
  9. Joystick: Convenient for I/O input (five positions);
  10. 32.768K crystal oscillator: for internal RTC;
  11. 8M crystal oscillator: enables the MCU run at 72M frequency by frequency multiplication;
  12. SDIO Interface: connects to the Micro SD Board easily, It is much faster to read/write the Micro SD card via SDIO than via SPI;
  13. 8 I/O Interface: easily connects to keypad, motor, etc.;
  14. CAN Interface: communicates with accessory boards which feature the CAN device conveniently;
  15. SPI Interface: easily connects to SPI peripherals such as FLASH (AT45DBxx), SD card, MP3, etc.;
  16. I2C Interface: easily connects to I2C peripherals such as I/O expander(PCF8574), EEPROM (AT24Cxx), etc;
  17. NAND FLASH Interface: easily connects to the NAND FLASH peripherals;
  18. LCD Interface: easily connects to the touch screen LCD;
  19. ONE-WIRE Interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  20. PS/2 Interface: easily connects to PS/2 keyboard or mouse;
  21. USART1 Interface: easily connects to RS232, RS485, USB TO 232;
  22. USART2 Interface: easily connects to RS232, RS485, USB TO 232;
  23. USB Port: USB communication between board and PC;
  24. 5V DC jack;
  25. 5V/3.3 V power input/output;
  26. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion;
  27. JTAG/SWD interface: for debugging/programming;
  28. Boot Mode Selection: for configuring the BOOT0 and BOOT1 pins;
  29. USB Enable Jumper
    • Short the jumper to enable the PC auto detection while USB connecting;
    • Open the jumper to disable;
  30. PS/2 Interface Jumper
    • Short the jumper to connect the PS/2 device to default I/Os;
    • Open the jumper to connect the PS/2 device to custom I/Os via DuPont wires;
  31. LEDs Jumper
    • Short the jumper to connect the LEDs to default I/Os;
    • Open the jumper to connect the LEDs to custom I/Os via DuPont wires;
  32. VBAT Selection Jumper
    • Short the jumper to use system power supply;
    • Open the jumper to connect the VBAT to external power, such as battery;

Photos

STM32 Development Board
Open103V Development Board
STM32 Development Board
Connecting to touch screen LCD
STM32 Development Board
Connecting to ST-LINK
STM32 Development Board
Connecting to various peripherals

Open103V μC/OS-II (Ⅰ)
Open103V-ucosii
Open103V μC/OS-II (Ⅱ)
Open103V-ucosii
Open103V μC/OS-II (Ⅲ)
Open103V-ucosii
Open103V μC/OS-II (Ⅳ)


Note:
The Open103V supports programming via STM32 USART bootloader, a USB TO UART accessory board is also provided in the package.
The Open103V does NOT integrate any debugging function, a debugger is required.
The Open103V Standard includes only ONE accessory board -- PL2303 USB UART Board (mini).


JTAG/SWD Interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout
JTAG Header Pinout
Figure 2. SWD Header Pinout
SWD Header Pinout

Development Resources

  • Related softwares (KEIL etc.)
  • Demo Code (examples in C, μC/OS-II)
  • Schematic (PDF)
  • STM32 Development documents (Datasheet etc.)

Wiki: www.waveshare.com/wiki/Open103V

Weight: 0.199 kg

Quick Overview

  1. Open103V development board x 1
  2. PL2303 USB UART Board (mini) x 1
  3. USB Cable (mini) x 1
  4. 4-pin wire x 2
  5. 2-pin wire x 2
  6. USB power cable x 1
  7. Software CD x 1
