Motor Control Board
Drivers, Drivers

Motor Control Board

SKU:9208
Part No.:Motor Control Board
Brand:Waveshare

$5.69 DISCONTINUED
PriceQuantity
1
$5.392
$5.193
$4.994+
Share:

Details

Motor Control Board, drives DC Motors & Stepping Motors

Features

  • Onboard dual H-bridge driver L293D
    • drives 2 DC motors or 1 stepping motor at one time
    • 600mA output current (peak 1.2A) per single bridge
    • ESD protection
  • 5V operating voltage, motor drive voltage 4.5V-36V
  • Output via screw terminals, easy connection
  • Dimension : 43mm*27mm
  • Mounting hole size : 2mm
  • Storage temperature : -25℃ ~ +130℃

How to Use

  • M1A/M1B : connects to MCU digital IO, motor1 rotation controlling
  • M2A/M2B : connects to MCU digital IO, motor2 rotation controlling
  • GND : ground
  • VCC : 5V power supply
M1A/M2AM1B/M2BM1/M2
1 0 Counterclockwise/Clockwise
0 1 Clockwise/Counterclockwise
1 1 Stop
0 0 Stop

Note : the motor rotate directions depend on the connections.

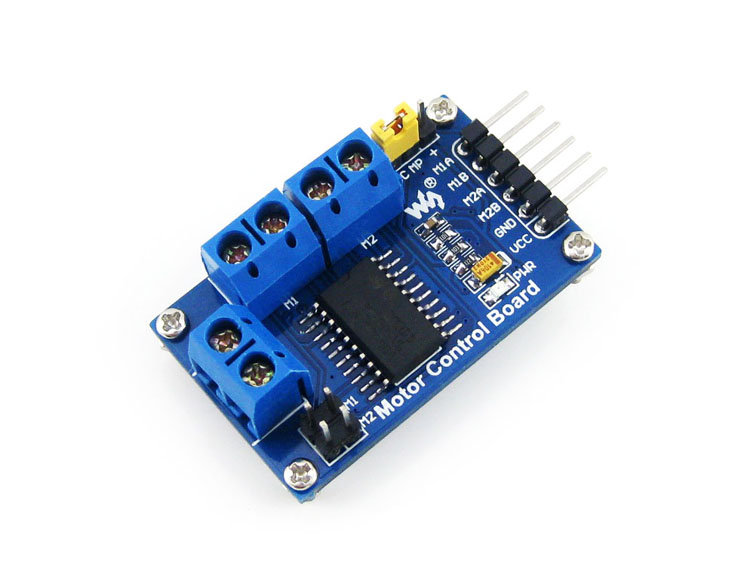

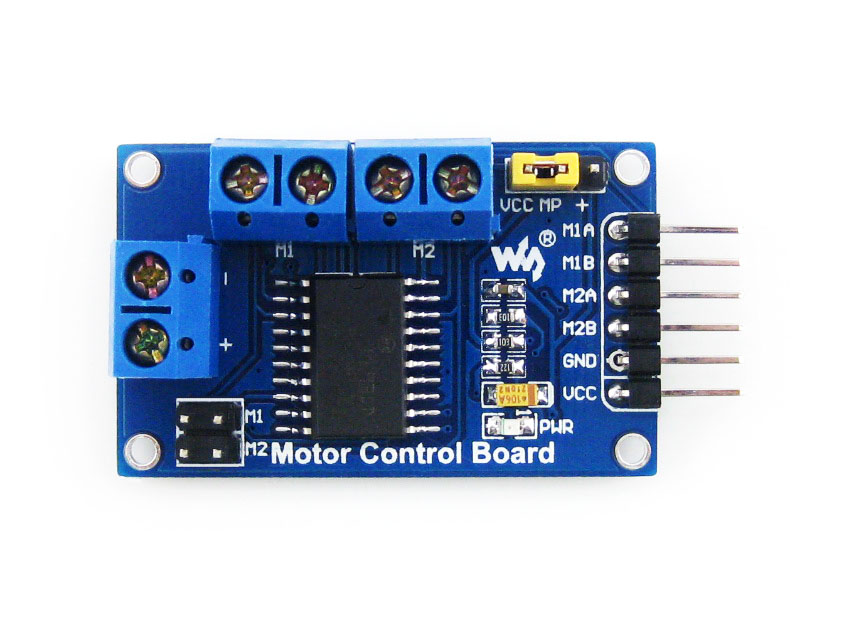

Photos

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/Motor_Control_Board

Weight: 0.012 kg

Quick Overview

  • Motor Control Board × 1
