- Description
- Package Content
Details
M.2 to PCIe 4-Ch Expander, Using With PCIe X1 to PCIe X16 Expander
M.2 to PCIe 4-ch Expander
Using With PCIe X1 to PCIe X16 Expander
* The M2-PCIe-Switch-4P needs to be used with PCIe-X1-TO-PCIe-X16-Cable (NOT included, please purchase separately).
Specifications
Model | M2-PCIe-Switch-4P |
---|---|
Transfer interface | PCIe X1 female port × 4, M.2 Mkey male port × 1 |
Operating system | Windows / Linux |
Dimensions | 80.0 × 22.0mm |
Model | PCIe-X1-TO-PCIe-X16-Cable |
---|---|
Transfer interface | PCIe X1 female port × 1, PCIe X16 port × 1 |
Power Supply interface |
6PIN header × 2 4PIN header × 1 SATA 15PIN header × 1 |
Dimensions | 119.80 × 44.83mm |
For M.2 M interface To PCIe ports
M2-PCIe-Switch-4P supports 1-ch M.2 M to 4-ch PCIe X1
(Note: the output are PCIe X1 ports, not the USB ports)
PCIe-X1-TO-PCIe-X16-Cable Supports PCIe X1 to PCIe X16
Reinforcement design, better protection
multi-layer circuit boards for lossless transmission
Neat interface layout
Can effectively reduce interface interference and ensure stable data transmission
Expand to 4-ch PCIe Port
Suitable for application scenarios that require multiple PCIe ports at the same time
Product Show
Outline dimensions
Weight: 0.017 kg

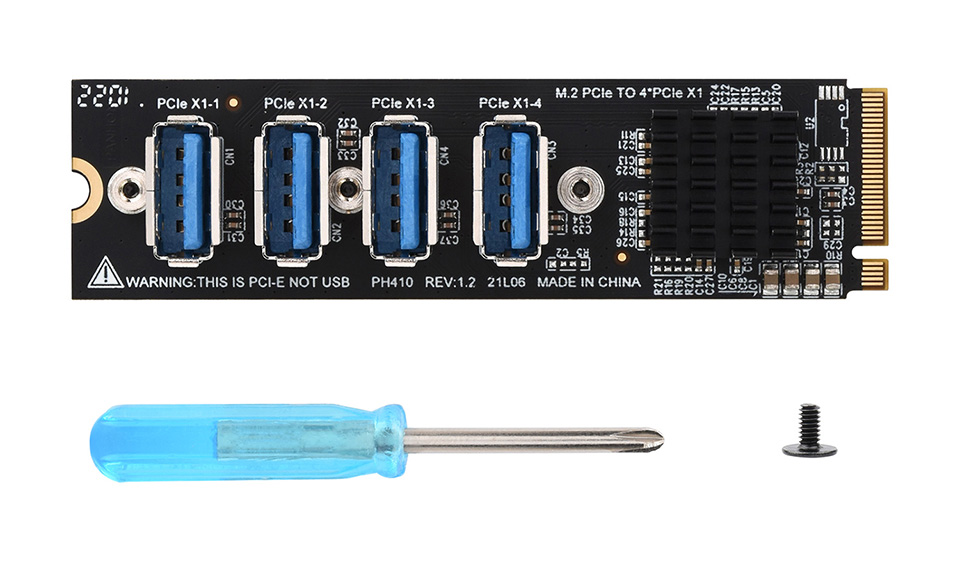

Quick Overview
M2-PCIe-Switch-4P x1
