Luckfox Nova Micro Development Board, Based On Rockchip RK3308B, 8GB eMMC, Integrated High-Performance Audio Codec, Optional for Wireless / PoE Module
Luckfox Nova

The Luckfox Nova is an embedded development board based on the Rockchip RK3308B chip. The Rockchip RK3308B is a high-performance processor designed for smart voice interaction, audio input/output processing, and digital multimedia applications. Its core architecture adopts 64-bit quad-core ARM Cortex-A35, with a maximum clock speed of 1.3GHz, providing powerful computing capability to handle complex embedded tasks with ease.

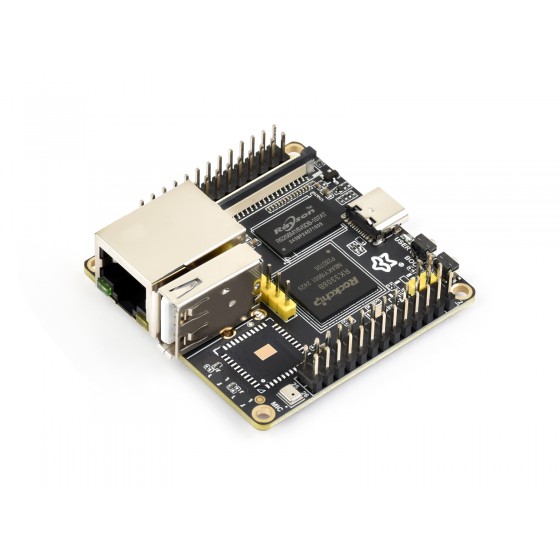

Luckfox Nova series, front view Luckfox Nova series, features
Development Board Versions
Luckfox Nova series, version options
Board Introduction
  • ARM quad-core 64-bit Cortex-A35 at 1.3GHz, with integrated high-performance Audio Codec and Voice Activity Detection (VAD) modules
  • Built-in Audio Codec with up to 8-channel microphone inputs for easy development of multi-microphone array applications
  • Adapting 2 × 26PIN GPIO headers, supports UART, SPI, I2C and other peripheral controls
  • Onboard 8GB eMMC + TF card expansion (supports SDIO 3.0 protocol), to meet the needs of large-capacity data storage
  • Onboard 512MB DDR3 memory for smooth multi-tasking operation
Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Luckfox Nova series, onboard Wi-Fi 6 and Bluetooth module
Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Nova series, onboard reserved PoE module header
optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Nova board In Only One Ethernet Cable

Luckfox Nova series, optional for PoE Module Luckfox Nova series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

Onboard TF card slot

allows storage expansion via TF card

Luckfox Nova series, onboard TF card slot
Audio Input and output interfaces

Onboard microphone + speaker header

Luckfox Nova series, onboard audio Input and output interfaces
What's On Board
Luckfox Nova series, onboard components
  1. USB Type-C port
    for power supply and program burning
  2. USER-LED
    for indicating system operating status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO headers
  6. Onboard microphone
  7. Antenna connector
    (for wireless version only)
  8. WIFI/Bluetooth module
    2.4G WiFi 6 / BT5.2 / BLE Bluetooth module (for wireless version only)
  9. Type-A port
  1. RJ45 100M Ethernet port
  2. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  3. Analog / Digital audio interface
  4. 512MB DDR3
  5. RK3308B
  6. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply
  7. PoE module header
  8. TF card slot
  9. 8GB eMMC

Pin definition

Luckfox Nova series, pin definition
outline dimensions
Luckfox Nova series, outline dimensions

Certificate of Authorization
Luckfox Nova series, certificate
Resources & Services

Quick Overview

Luckfox Nova

  1. Luckfox Nova x1
  2. USB Type-A to Type-C cable ~1m x1
1Luckfox Nova
2

Luckfox Nova W

  1. Luckfox Nova W x1
  2. USB Type-A to Type-C cable ~1m x1
  3. IPEX4 to SMA cable x1
  4. 6DB antenna ~17cm x1
1Luckfox Nova W
2
3
4

Luckfox Nova PoE Kit

  1. Luckfox Nova x1
  2. USB Type-A to Type-C cable ~1m x1
  3. Luckfox PoE module x1
  4. Screws pack x1
1Luckfox Nova
2
3
4

Luckfox Nova W PoE Kit

  1. Luckfox Nova W x1
  2. USB Type-A to Type-C cable ~1m x1
  3. Luckfox PoE module x1
  4. Screws pack x1
  5. IPEX4 to SMA cable x1
  6. 6DB antenna ~17cm ~17cm x1
1Luckfox Nova W
2
3
4
5
6
