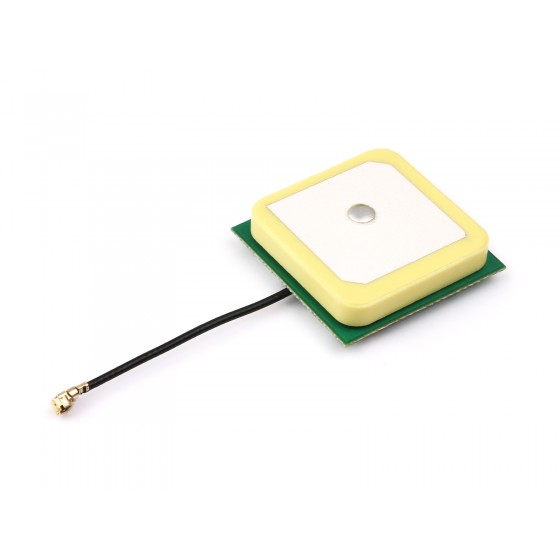

GNSS Active Ceramic Positioning Antenna, IPEX 1 connector, Supports multiple satellite positioning systems

SKU:24095
Part No.:GNSS Ceramic Antenna

$3.99
PriceQuantity
$3.7910+
$3.6950+
$3.65100+
Related Products:
Description

Details

GNSS Active Ceramic Positioning Antenna, IPEX 1 connector, Supports multiple satellite positioning systems
GNSS Active Ceramic Positioning Antenna

Supports multiple satellite positioning systems such as BD, GPS, GLONASS

Specifications
Center frequency 1575.42±2MHz /
1561±2MHz /
1602.56±2MHz
Output impedance 50Ω
Gain 21dBi±2 Connector IPEX 1
Cable length ~ 35mm Ceramic dimension 25 × 25mm
Current Consumption <10mA Polarization R.H.C.P
Power Supply DC 3.3 ~ 5.0V Noise Figure ≤1.5dB
Axial Ratio 3dB Input power (Max) 50W
Radiation direction Omni-directional Operating temp. -20 ~ +65˚C

GNSS Antenna Connection Examples

Connect to L76K GPS Module

for reference only, please refer to the part list for detailed package content



product show

Outline dimensions

Note: supports mass customization for cable length and antenna connector

Weight: 0.013 kg

Quick Overview

  1. GNSS Ceramic Antenna x1
