General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications, Compatible with Raspberry Pi and Jetson Nano
General Driver for Robots

Multi-functional driver board designed for robots, offering more possibilities


Features at a glance
  • Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, Bluetooth and ESP-NOW
  • Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder
  • Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback
  • Onboard 9-axis IMU to obtain attitude and heading information at any time
  • Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module
  • Automatic download circuit for easy uploading programs
  • Support input voltage/current monitoring
  • Onboard TF card slot
  • Onboard Laser Lidar interface and integrated UART to USB function
  • I2C interface for connecting peripherals such as OLED, IMU, and other I2C devices
  • Adapting Multi-functional extended header for additional functions, such as controlling servos or relays
  • Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc), communicating via serial port or I2C
  • Provides open-source demos and detailed tutorials for beginners, easy to get started

Specifications
control module ESP32-WROOM-32 Control chip ESP32
Power supply DC 7~13V Power interface XH2.54
Antenna connector IPEX1 Download interface Type-C
Wireless communication WIFI, Bluetooth, ESP-NOW Dimensions 65 × 65mm
mounting hole spacing 49 × 58mm Mounting hole diameter 3mm

Rich Peripheral interfaces
Suitable for different types of robots
ESP32 Main Controller
Rich Resources for secondary development

Built-in WiFi and Bluetooth, as well as ESP-NOW support, for wireless communication

Support multiple Peripheral connections
40PIN GPIO extended header

The inner side 40PIN header is for directly connecting to the Raspberry Pi or other host boards. And extend the outer side 40PIN header for connecting with other HATs via cables

Serial Bus Servo Control

Allows controlling up to 253 ST3215 serial bus servos at the same time

Note: One channel UART can control up to 253 bus servos, but due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.
Voltage and current monitoring

Onboard voltage/current monitoring chip to obtain the power supply status
of the robot at any time

Onboard 9-axis IMU

Onboard QMI8658C + AK09918, for detecting movement, orientation, and magnetic
Support Obtaining the heading angle of the robot anytime and anywhere


What's On Board
  1. ESP32-WROOM-32 controller module
    Can be developed using Arduino IDE
  2. IPEX1 WIFI connector
    For connecting WIFI antenna to increase the wireless communication distance
  3. LIDAR interface
    Integrated radar adapter function
  4. I2C peripheral expansion interface
    For connecting with OLED screen or other I2C sensors
  5. Reset Button
    Press and release to reboot the ESP32
  6. Download button
    The ESP32 will enter the download mode after powering on
  7. DC-DC 5V voltage regulator circuit
    Power supply for host computers such as Raspberry Pi or Jetson nano
  8. Type-C port (LADAR)
    LIDAR data transmission
  9. Type-C port (USB)
    ESP32 communication interface, for uploading programs to ESP32
  10. XH2.54 power port
    Support DC 7~13V input, can directly power the serial bus servos and motors
  11. INA219
    voltage/current monitoring chip
  12. Power ON/OFF
    External power supply ON/OFF
  13. ST3215 serial bus servo interface
    For connecting with ST3215 serial bus servo
  14. Motor interface PH2.0 6P
    Group B interface for motor with encoder
  1. Motor interface PH2.0 6P
    Group A interface for motor with encoder
  2. Motor interface PH2.0 2P
    Group A interface for motor without encoder
  3. Motor interface PH2.0 2P
    Group B interface for motor without encoder
  4. AK09918C
    3-axis electronic compass
  5. QMI8658C
    6-axis motion sensor
  6. TB6612FNG
    Motor Control Chip
  7. Serial bus servo control circuit
    for controlling multiple ST3215 serial bus servos and obtaining servos feedback
  8. TF card slot
    Can be used to store logs or WIFI configurations
  9. 40PIN GPIO header
    For connecting with Raspberry Pi or other host boards
  10. 40PIN extended header
    Easy to use the GPIO pins of Raspberry Pi or other host boards
  11. CP-2102
    UART to USB, for radar data transmission
  12. CP-2102
    UART to USB, for ESP32 communication
  13. Automatic download circuit
    For Uploading programs to the ESP32 without pressing the EN and BOOT buttons

Provides open-source demos
and detailed tutorials


Product Show



Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.049 kg

Quick Overview

  1. General Driver for Robots x1
  2. Bluetooth antenna x1

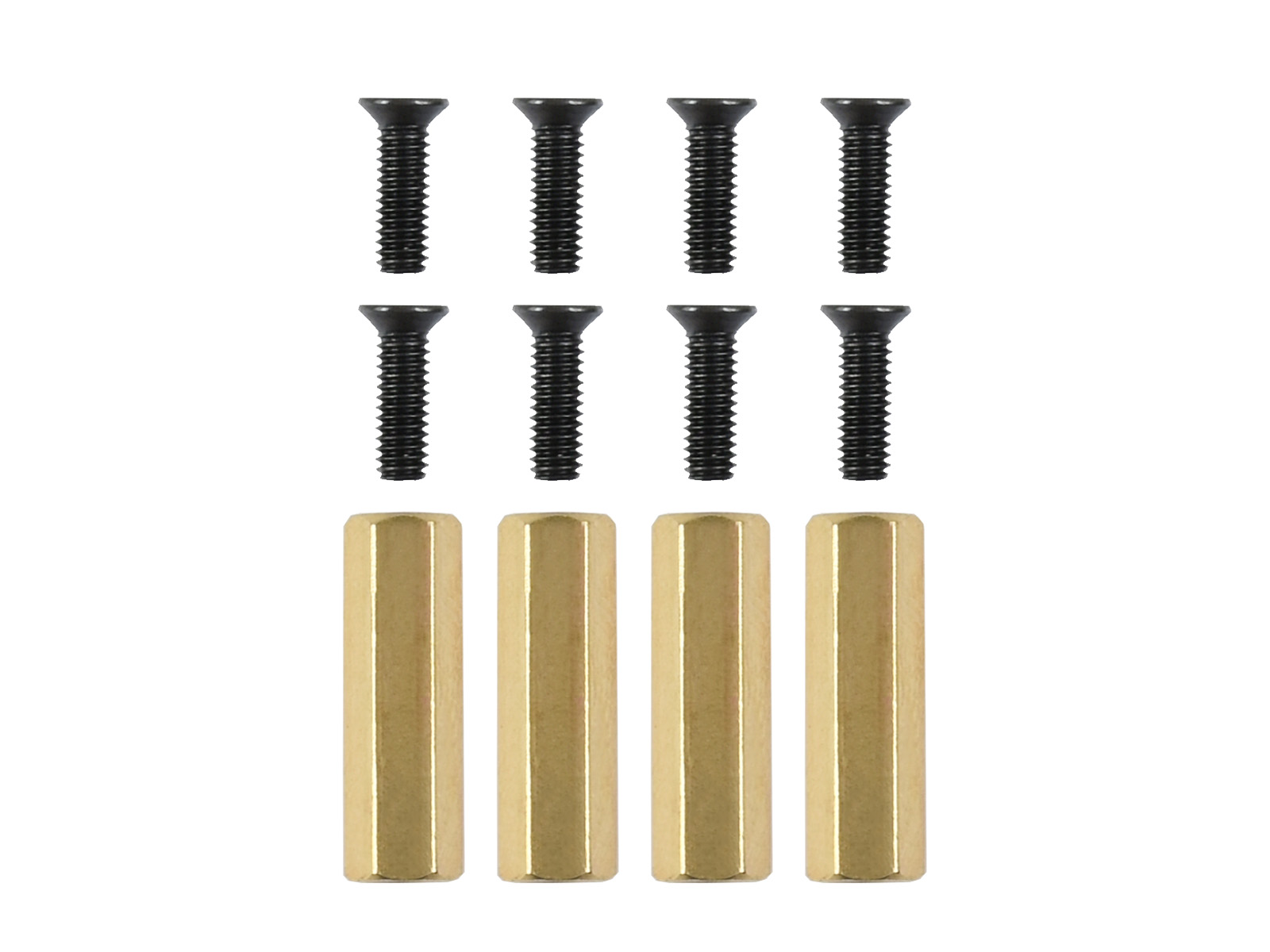

  3. Screws pack x1
