Details
Embedded with SH8601 Display Driver and FT3168 Capacitive Touch Chip
ESP32-S3-Touch-AMOLED-1.8-EN
Standard version, without Lithium battery
ESP32-S3-Touch-AMOLED-1.8
Comes with a 3.7V MX1.25 Lithium battery
(can be installed inside the case)
ESP32-S3-Touch-AMOLED-1.8 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.8inch AMOLED display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate it into the products quickly.
Key features include:
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, improving device compatibility, easier to use
- Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color
- Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery
- Onboard PWR and BOOT programmable buttons for easy custom function development
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header, optional for 3.7V Lithium battery
- Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging
- Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
- Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
- Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
| Display Panel | AMOLED | Display Size | 1.8 inch |
|---|---|---|---|
| Resolution | 368 × 448 pixels | Display Colors | 16.7M |
| Brightness | 350 cd/㎡ | Contrast Ratio | 100000:1 |
| Communication Interface | QSPI | Driver IC | SH8601 |
| Touch | Supported | Touch IC | FT3168 |
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing battery* inside the case for independent operation.
The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image
Excellent Display Performance, 16.7M color, wide viewing angle
Supports high-quality audio processing, providing clear and high-quality audio input and output
Allows access to online large model platforms to support more AI application scenarios
Comprehensive SDK, dev resources, tutorials to help you easily get started
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
with removable back cover for easy embedded into the projects and DIY design
- ESP32-S3R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM - QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer - PCF85063
RTC chip - AXP2101
Highly integrated power management IC - ES8311
Low power mono audio codec - Speaker
- Backup battery pads
for connecting backup battery, ensuring RTC function during the replacement of the main battery
- MX1.25 Lithium battery header
MX1.25 2P connector, for 3.7V Lithium battery (optional), supports charging and discharging. (To fit inside the case, a battery size of 3.85 × 24 × 28 mm is recommended) - 16MB NOR-Flash
for storing data - Microphone
- Onboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) - Reserved GPIO pads (pitch 1mm)
Adopting available IO function pins for easy expansion - BOOT button
for device startup and function debugging - USB Type-C port
ESP32-S3 USB interface, for programming and log printing - PWM button
for system power supply ON/OFF, supports custom functions
| Model | display | onboard resources | Peripheral interfaces | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| pixels | Interface | Display | Touch | IMU | RTC | TF | Buzzer | Speaker | mic | battery header |
antenna | ||||
| AMOLED display | |||||||||||||||
 ESP32-S3-Touch-AMOLED-1.91 |
240 × 536 | QSPI | RM67162 | FT3168 | √ | - | √ | - | - | - | √ | √ | 40PIN header | ||
 ESP32-S3-AMOLED-1.91 |
240 × 536 | QSPI | RM67162 | - | √ | - | √ | - | - | - | √ | √ | 40PIN header | ||
 ESP32-S3-Touch-AMOLED-1.8 |
368 × 448 | QSPI | SH8601 | FT3168 | √ | √ | √ | - | √ | √ | √ | √ | I2C, UART, GPIO pads | ||
| LCD display | |||||||||||||||
 ESP32-S3-Touch-LCD-2.8 |
240 × 320 | SPI | ST7789 | CST328 | √ | √ | √ | - | √ | - | √ | √ | I2C, UART, SH1.0 12PIN header | ||
 ESP32-S3-Touch-LCD-2.8C |
480 × 480 | RGB | ST7701 | GT911 | √ | √ | √ | √ | - | - | √ | √ | I2C, UART, SH1.0 12PIN header | ||
 ESP32-S3-Touch-LCD-2.1 |
480 × 480 | RGB | ST7701 | CST816 | √ | √ | √ | √ | - | - | √ | √ | I2C, UART, SH1.0 12PIN header | ||
 ESP32-S3-Touch-LCD-1.85 |
360 × 360 | QSPI | ST77916 | CST816 | √ | √ | √ | - | √ | √ | √ | √ | I2C, UART, GPIO pads | ||
 ESP32-S3-LCD-1.85 |
360 × 360 | QSPI | ST77916 | - | √ | √ | √ | - | √ | √ | √ | √ | I2C, UART, GPIO pads | ||
 ESP32-S3-Touch-LCD-1.69 |
240 × 280 | SPI | ST7789 | CST816 | √ | √ | - | √ | - | - | √ | √ | I2C, UART, GPIO pads | ||
 ESP32-S3-LCD-1.69 |
240 × 280 | SPI | ST7789 | - | √ | √ | - | √ | - | - | √ | √ | SH1.0 12PIN header | ||
 ESP32-S3-LCD-1.47 |
172 × 320 | SPI | ST7789 | - | - | - | √ | - | - | - | - | √ | 18PIN header | ||
 ESP32-C6-LCD-1.47 |
172 × 320 | SPI | ST7789 | - | - | - | √ | - | - | - | - | √ | 18PIN header | ||
 ESP32-S3-Touch-LCD-1.46B |
412 × 412 | QSPI | SPD2010 | SPD2010 | √ | √ | √ | - | √ | √ | √ | √ | 20pin GPIO header | ||
 ESP32-S3-Touch-LCD-1.46 |
412 × 412 | QSPI | SPD2010 | SPD2010 | √ | √ | √ | - | √ | √ | √ | √ | 20pin GPIO header | ||
 ESP32-S3-Touch-LCD-1.28 |
240 × 240 | SPI | GC9A01A | CST816 | √ | - | - | - | - | - | √ | √ | SH1.0 12PIN header | ||
 ESP32-S3-LCD-1.28 |
240 × 240 | SPI | GC9A01A | - | √ | - | - | - | - | - | √ | √ | 2 × 20PIN header (1.27mm pitch) | ||
 ESP32-C3-LCD-0.71 |
160 × 160 | SPI | GC9D01 | - | - | - | - | - | - | - | √ | √ | 12PIN GPIO pads | ||
 ESP32-S3-GEEK |
240 × 135 | SPI | GC9A01A | - | - | - | √ | - | - | - | - | √ | I2C, UART, GPIO | ||
Quick Overview
- ESP32-S3-Touch-AMOLED-1.8 x1

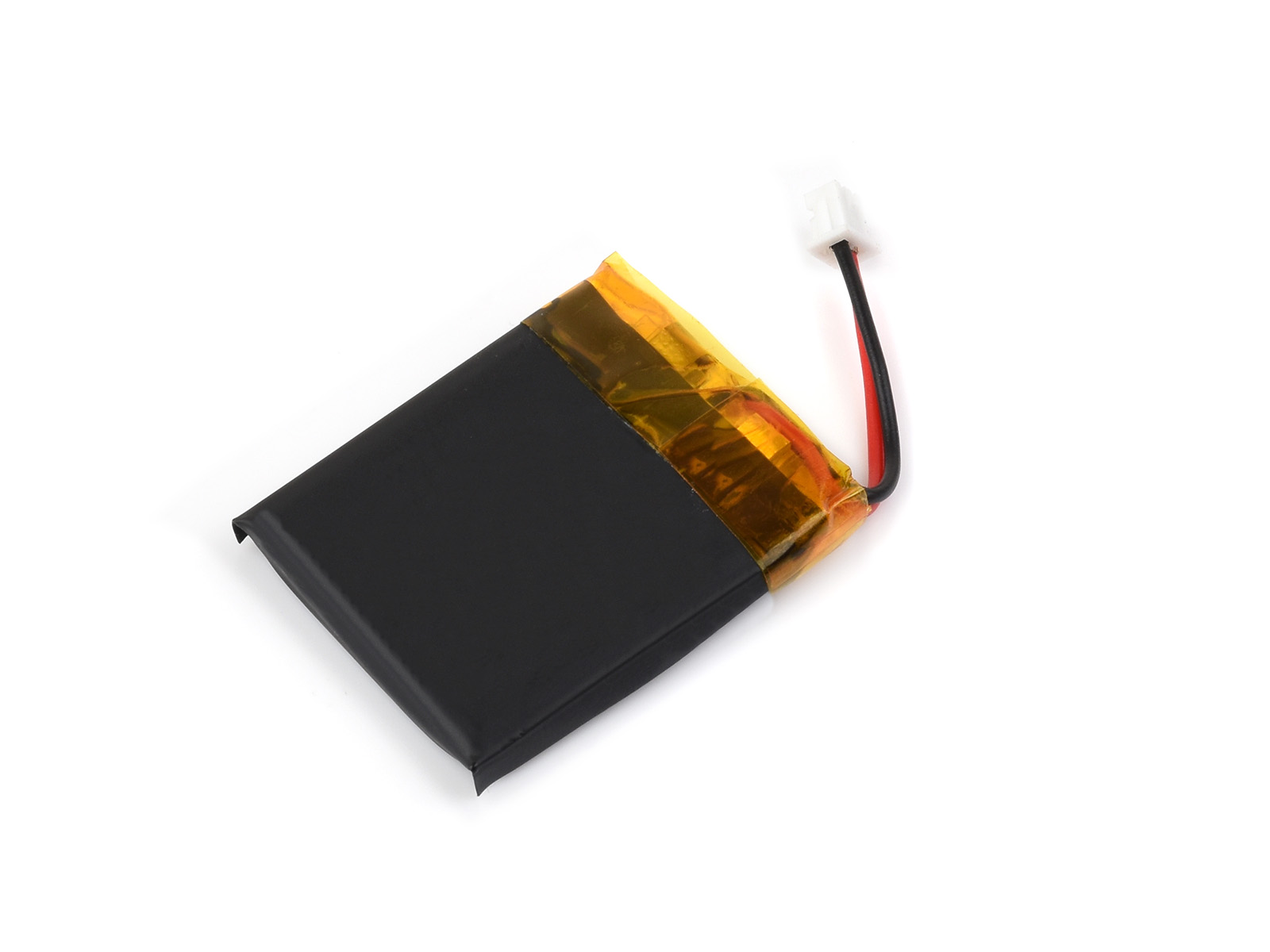

- OPTIONS 3.7V MX1.25 Lithium battery ×1
