Accessories Pack (type A) for Cubietruck, including Expansion Board DVK570, Modules, Camera
Note: Cubietruck is NOT included.
Overview
An accessories Pack (type A) to be used with Cubietruck. It consists of expansion board DVK570, various modules, a USB camera and other useful accessories.
What's on the DVK570
- Cubietruck connector
- UART0 interface: for connecting serial debugging module
- I2C interface: easily connects to I2C modules such as PCF8563 RTC Module, MAG3110 Board, etc.
- TVIN interface: video input
- TVOUT interface: video CVBS output, for connecting display devices like TV
- LINEIN interface: audio input
- USB interface: USB TO UART (PL2303TA)
- UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
- SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, etc.
- ZigBee connector: for connecting ZigBee modules like Core2530, supports working with ZB501
- ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
- 5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
- PL2303TA: onboard USB TO UART convertor
- 12M crystal: for PL2303TA
- Buzzer
- User LEDs: 4 colorful LEDs
- Power indicator
- AD keys: 7 common Android keys
- ONE-WIRE jumper
- Buzzer jumper
- AD Keysjumper
- User LEDs jumper
- TVIN jumper
- TVOUT jumper
- UART0 jumper
For jumpers above:
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
DVK570 Photos

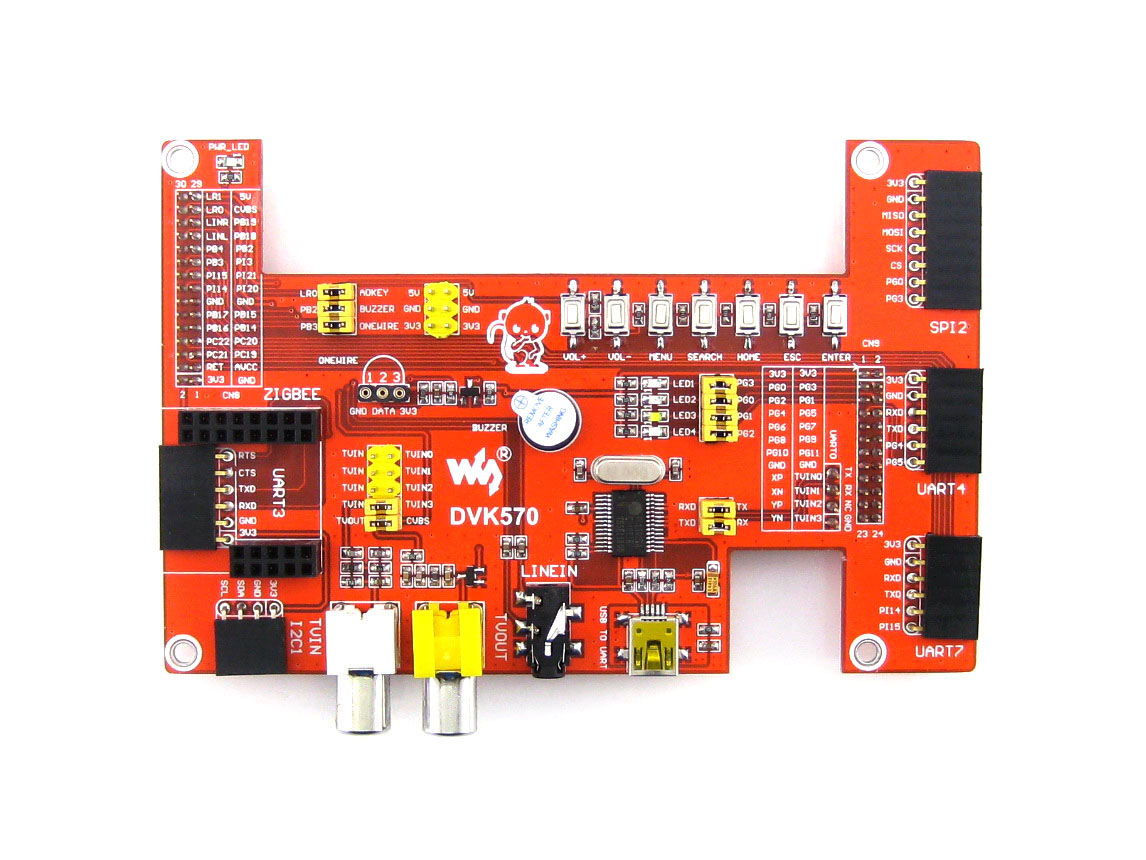

DVK570 Cubietruck expansion board
DVK570 Cubietruck expansion board
DVK570 Cubietruck expansion board back view

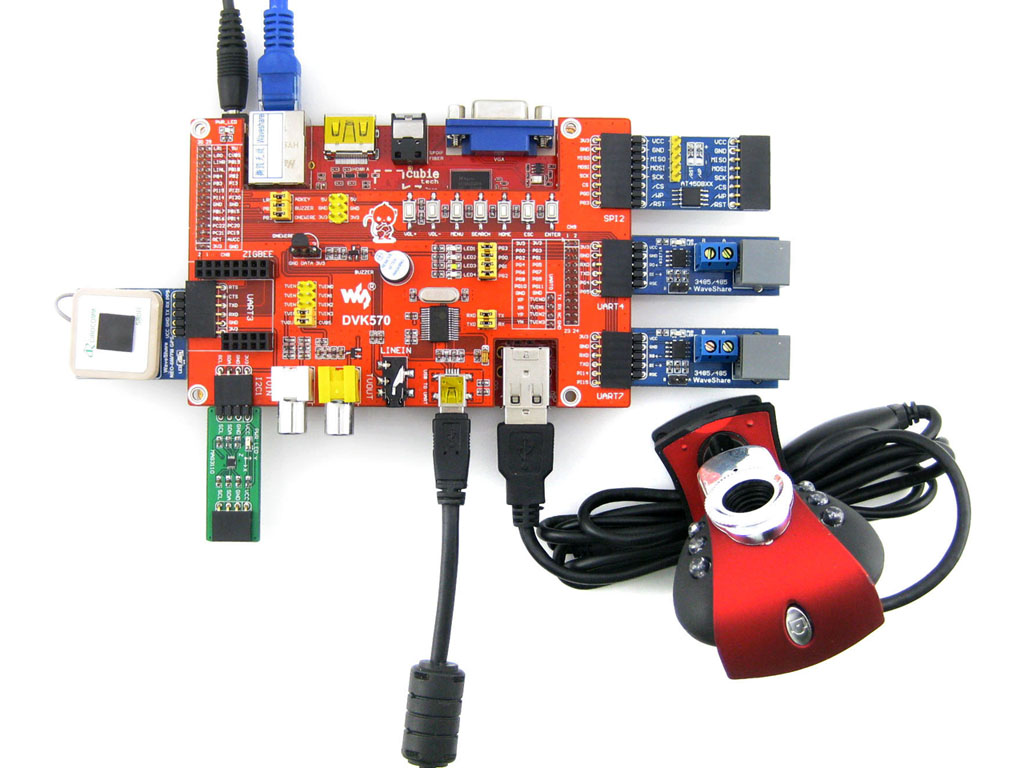

Connecting with Cubietruck and accessories
Examples
| Peripheral | Interface | Linux |
|---|---|---|
| LED | I/O | Y |
| Buzzer | PWM | Y |
| AD keys | EVENT3 | Y |
| DS18B20 Temperature sensor | 1-WIRE | Y |
| MAG3110 Board | I2C1 | Y |
| AT45DBXX DataFlash Board | SPI2 | Y |
| RS485 Board (3.3V) | UART4/UART7 | Y |
| UART GPS | UART3 | Y |
| USB CAMERA | VIDEO0 | Y |
Development Resources
| Data Types | Description | Download |
|---|---|---|
| Documentations | User Manual |  |
| Developing Product | |
|
| Burning Firmware | |
|
| Porting Kernel | |
|
| Porting Drivers | |
|
| LiveSuit-User-Guide-EN | |
|
| Schematics | DVK570 | |
| Image | Lubuntu | |
| Debian | |
|
| Android | |
|
| Source Code | Source Code | |
| Software | LiveSuitePack | |
| LiveSuitV305_For_Linux32 | |
|
| LiveSuitV305_For_Linux64 | |
|
| putty | |
|
| PL2303_Prolific_DriverInstaller_v1.8.0 | |
|
| HPUSBDisk | |
|
| Win32DiskImager | |
|
| ultra-serial-port-monitor | |
Recommended Items
- The Cubietruck requires 5V/2A power supply like: Power Adapter US Standard 5V 2.1A USB Output
- Cubietruck Expansion Board (for Arduino): DVK571
Downloads
Development resources:image, schematic, software, etc.
Wiki:
www.waveshare.com/wiki/Cubietruck_Acce_A
Weight: 0.626 kg
Quick Overview

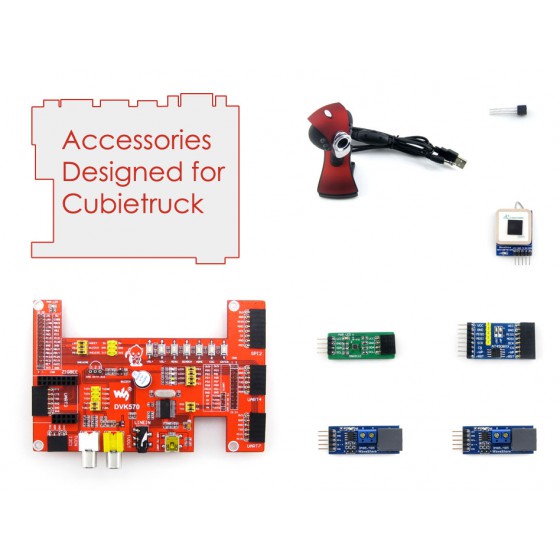

Package Contains
- DVK570 x 1
- USB Camera OV7670 x 1
- UART GPS x 1
- AT45DBXX DataFlash Board x 1
- MAG3110 Board x 1
- RS485 Board (3.3V) x 2
- DS18B20 x 1
