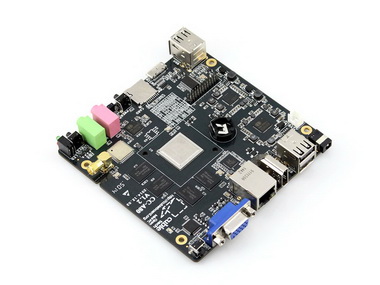

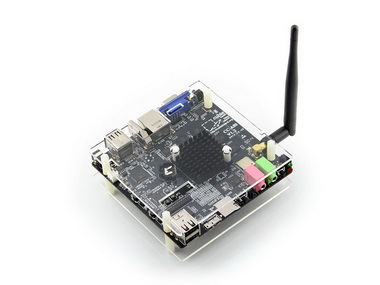

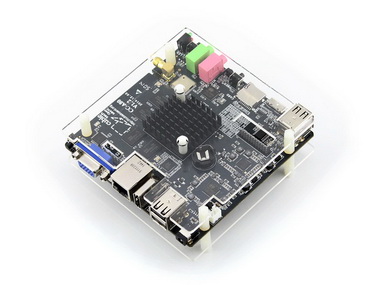

Cubieboard4 CC-A80, an ARM mini PC with Octa-Core Processor

Overview

Here comes the Cubieboard4, also called CC-A80. It features an Allwinner A80 Octa-Core processor with high performance far beyond A10, A20.

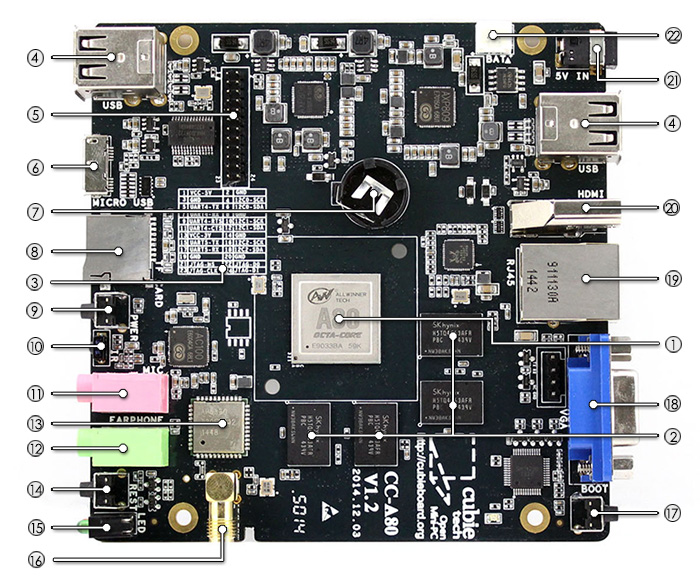

What's On Board

Cubieboard4-CC-A80 on board resource

  1. Processor : Allwinner A80, Octa-Core big-LITTLE A15/A7,28nm
    • CPU : Arm Cortex A15x4 up to 2.0GHz, A7x4 up to 1.3GHz
    • GPU : PowerVR 64-core G6230
  2. DDR3 2GB

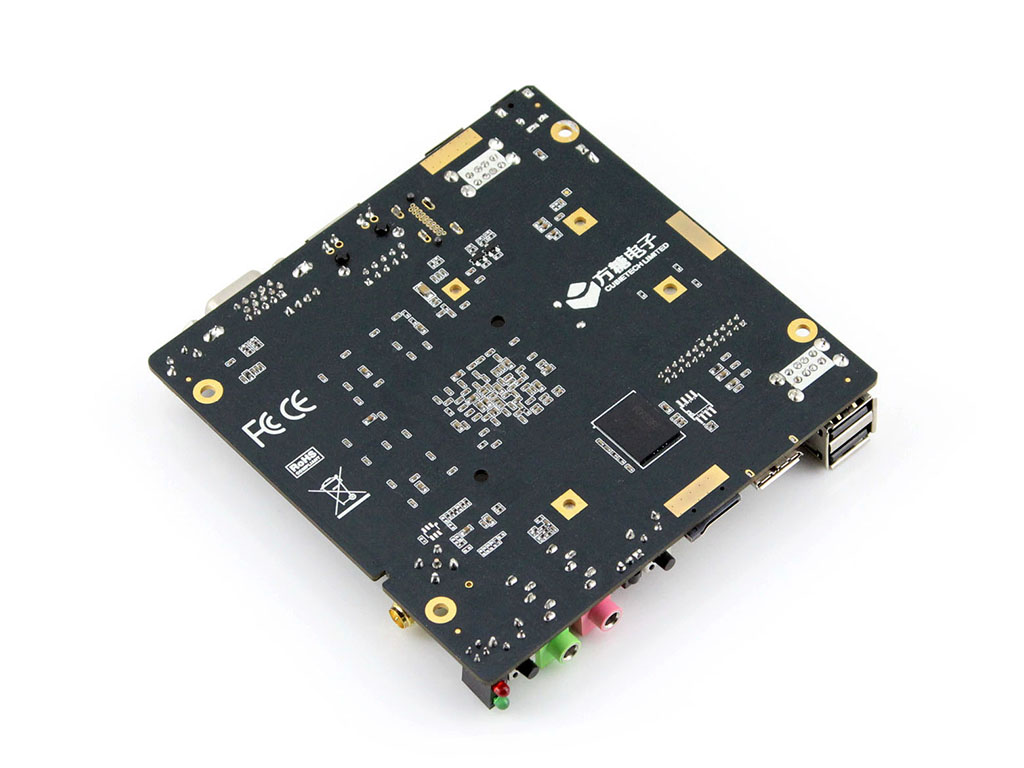

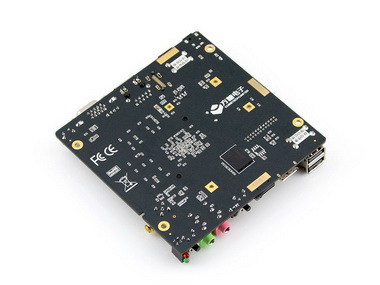

  3. 8GB eMMC Flash (bottom side)
  4. USB 2.0 x 4
  5. Expansion IO header
  6. USB 3.0 OTG
  7. RTC battery holder
  8. TF slot
  9. Power button
  10. IR receiver
  11. Mic input jack
  12. Earphone output jack
  13. WiFi + BT
  14. Reset button
  15. LED x 2
  16. External antenna connector
  17. Key for flashing
  18. VGA interface
  19. Gigabit Ethernet connector
  20. HDMI interface
  21. Power jack
  22. External lithium battery interfere

Photos

Weight: 0.409 kg

Quick Overview

  1. Cubieboard4 CC-A80 x 1

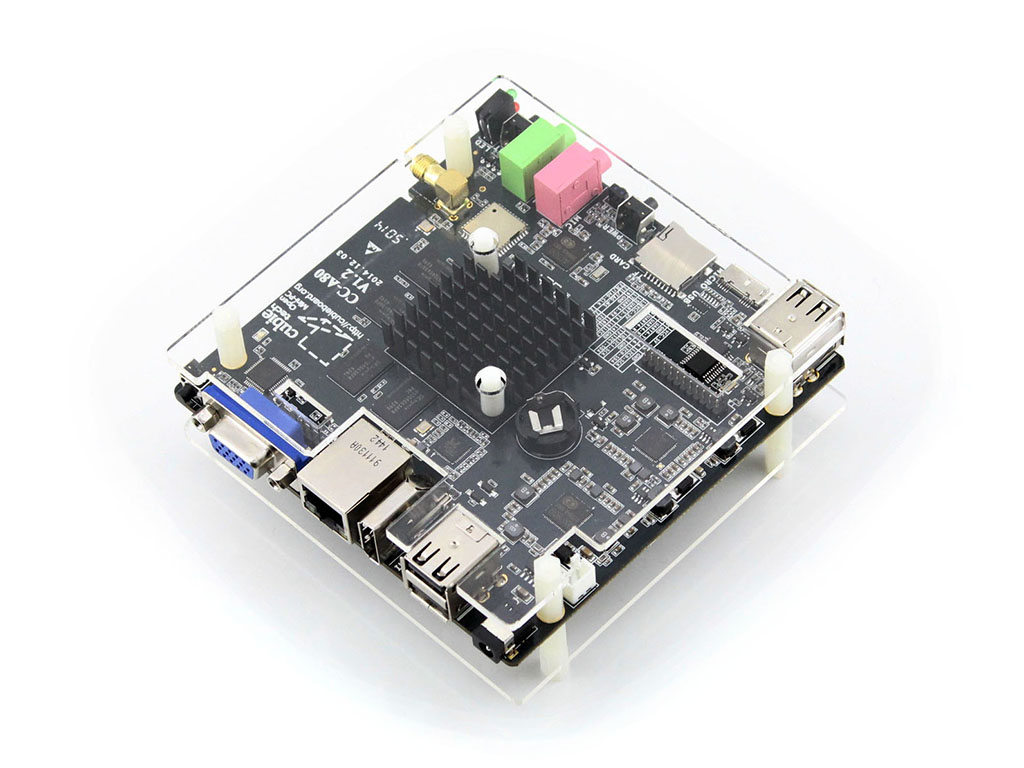

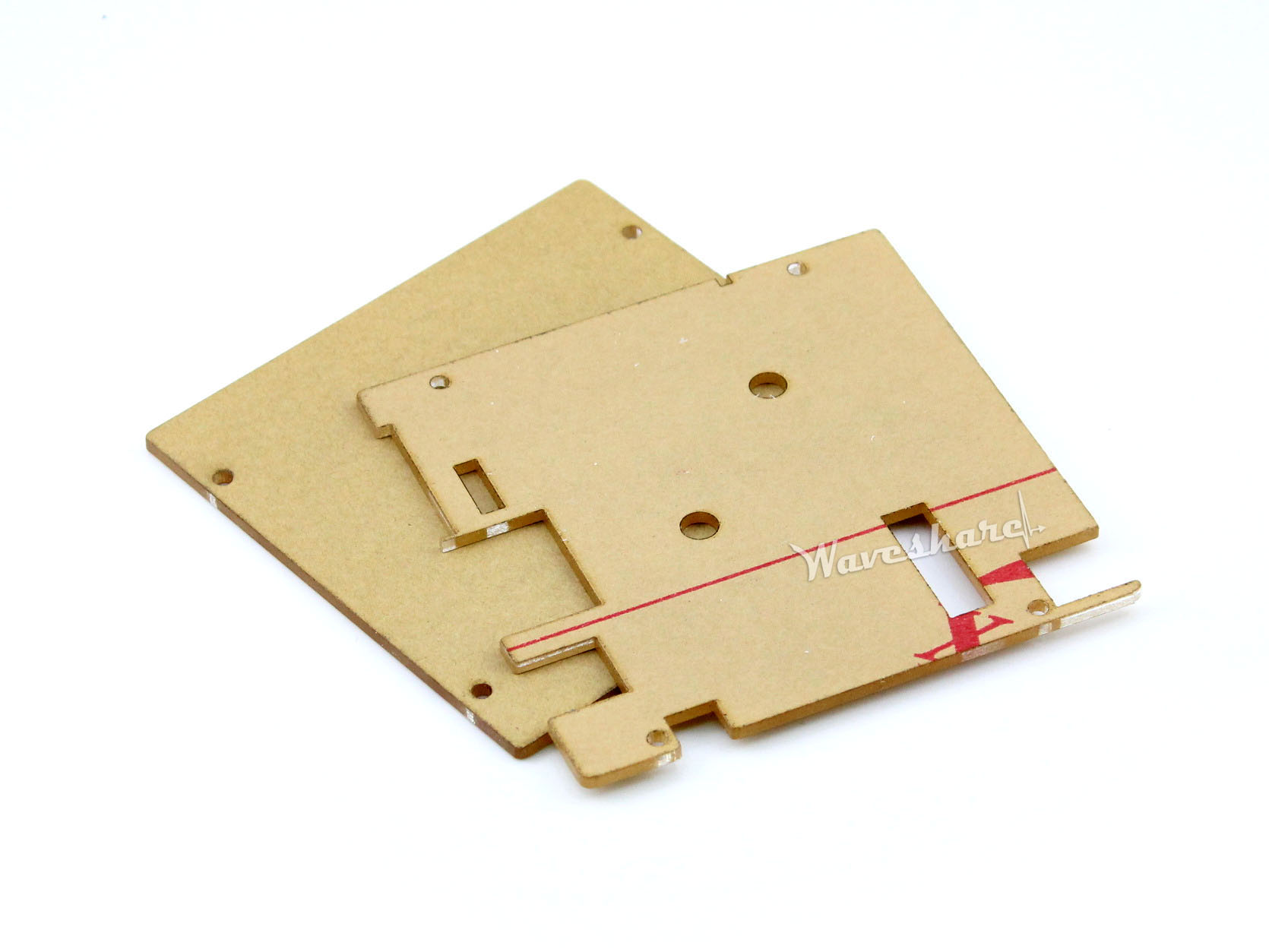

  2. Acrylic case x 1

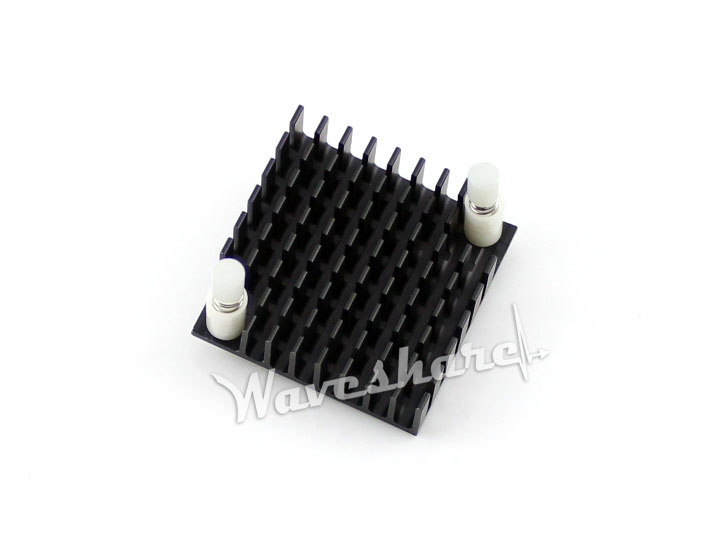

  3. 40*10*10 heat sink x 1

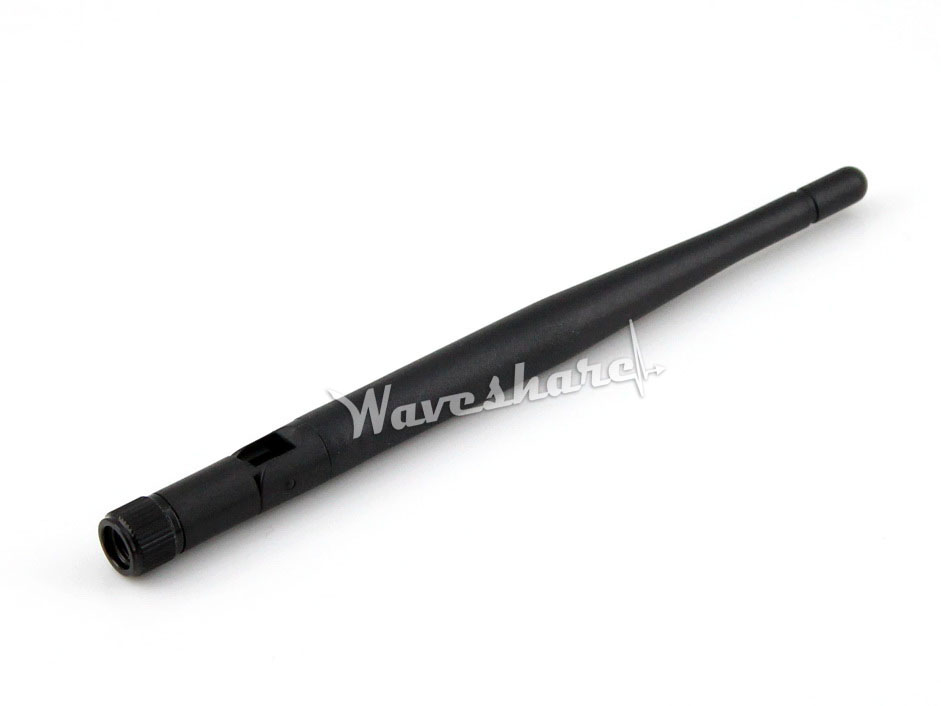

  4. 5G/2.4G dual-band antenna x 1

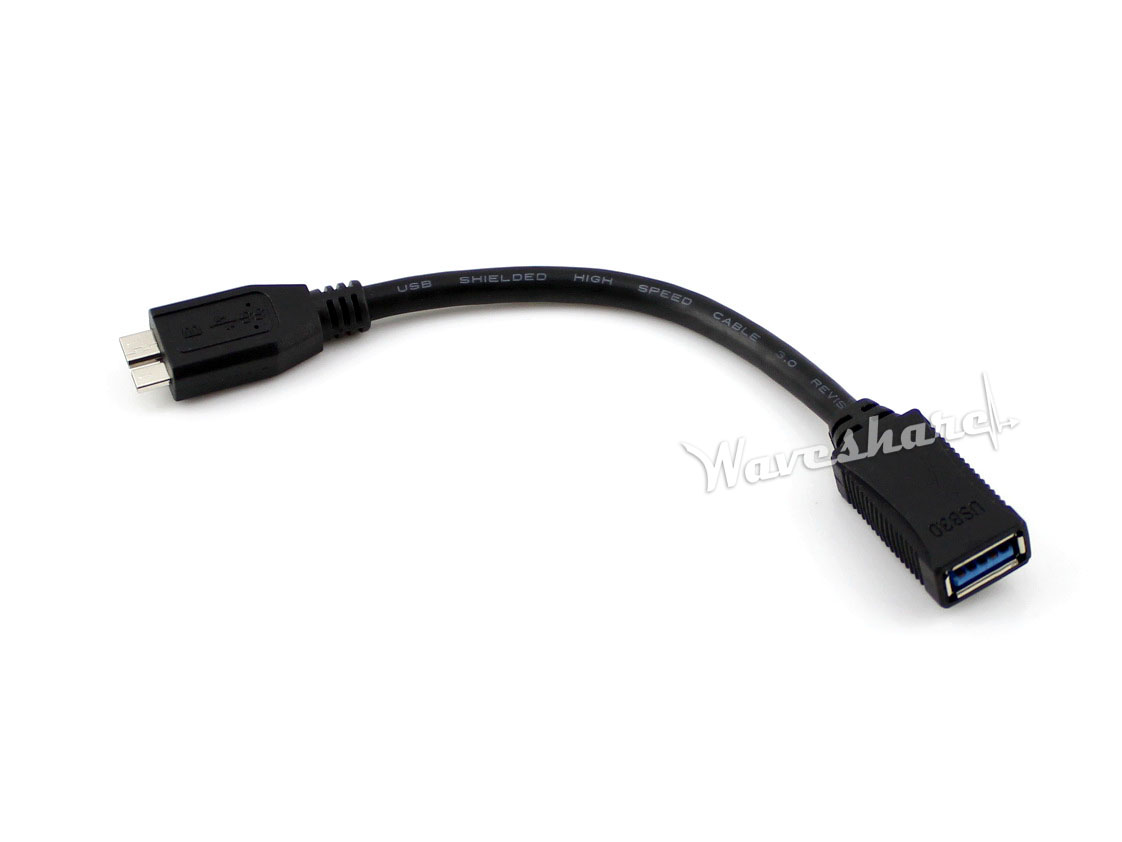

  5. USB OTG type A receptacle to Micro 3.0 plug cable x 1

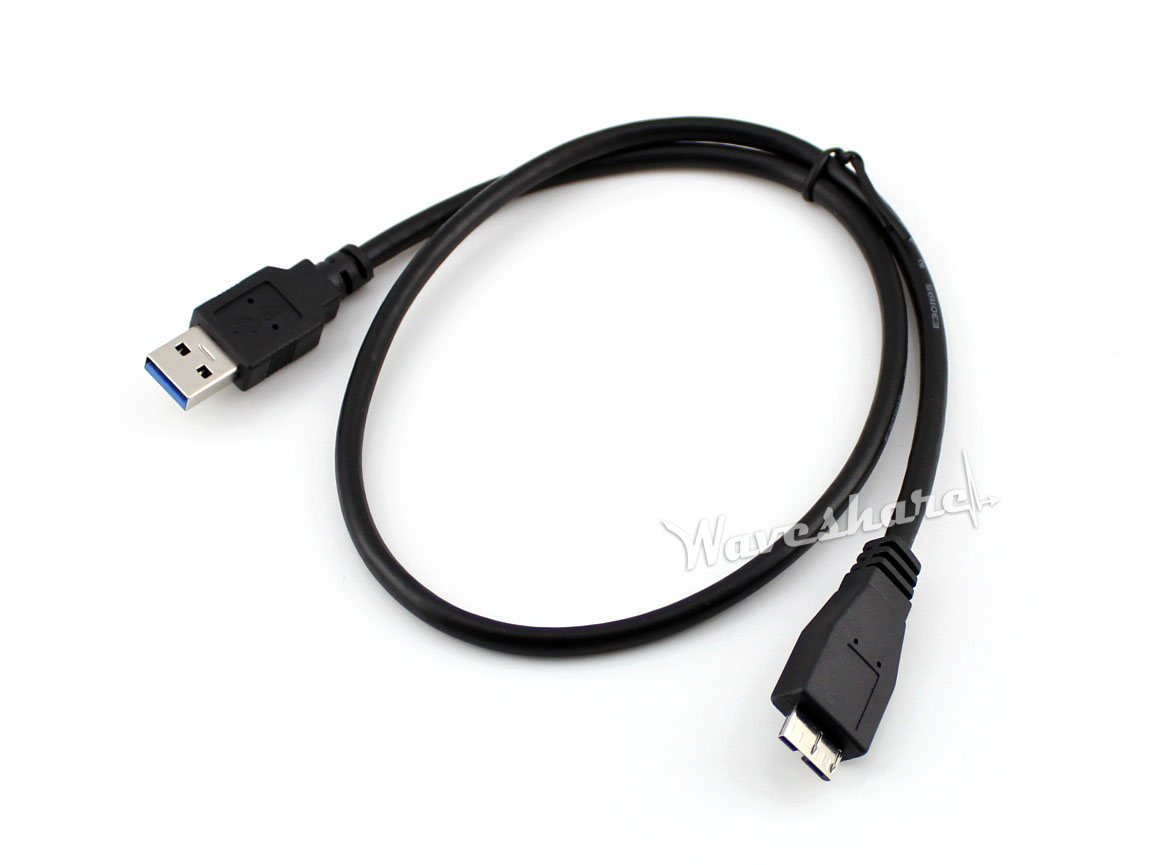

  6. USB type A plug to to Micro 3.0 plug cable x 1

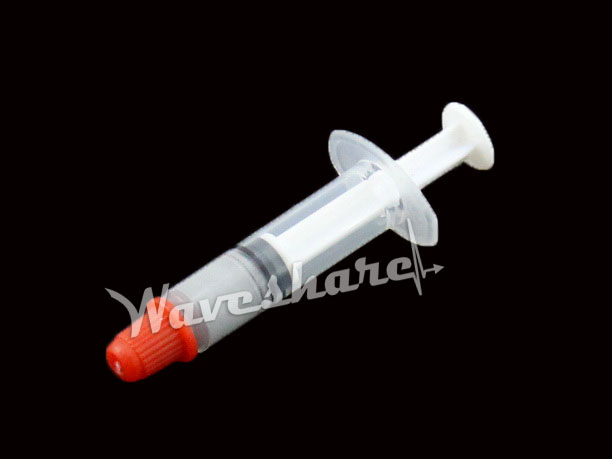

  7. Heat conductive silicon x 1
  8. Screws pack x 1
  9. Power Adapter US Standard 5V 4A 4/1.7mm x 1

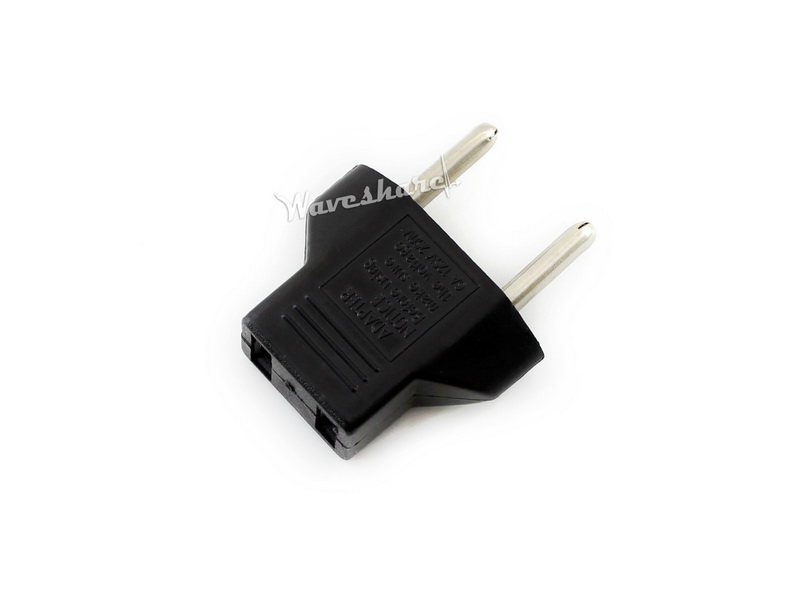

  10. US to EU Plug Adapter x 1
1
2
3
4
5
6
7
8
9
10

Dedicated 5V/4A power adapter included, ONLY FROM Waveshare.
