Core103Z is a small STM32 development board that features an STM32F103ZET6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.
As a minimal ready-to-run system, the Core103Z integrates USB communication interface, JTAG/SWD programming/debugging interface, boot mode selection, and so on.
Furthermore, pin headers on the backside allow the Core103Z to be plugged-in your application board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.00mm.
What's On Board
- STM32F103ZET6:the high performance STM32 MCU which features:
- Core: Cortex-M3 32-bit RISC
- Operating Frequency: 72MHz, 1.25 DMIPS/MHz
- Operating Voltage: 2-3.6V
- Package: LQFP144
- Memories: 512kB Flash, 64kB SRAM
- MCU communication Interfaces:
- 3xSPI, 5xUSART, 2xI2S, 2xI2C
- 1xFSMC, 1xLCD, 1xSDIO, 1xUSB, 1xCAN
- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
- AMS1117-3.3 (on bottom side): 3.3V voltage regulator
- Power supply switch, powered from 5Vin or USB connection
- Boot mode switch, for configuring BOOT0 pin
- Power indicator
- VBUS LED
- Reset button
- 8M crystal oscillator (on bottom side)
- 32.768K crystal (on bottom side), for internal RTC with calibration
- JTAG/SWD interface: for debugging/programming
- USB interface: used for establishing USB communication between PC and the STM32 development board
- MCU pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
- 5Vin pinheader, power input
- USB enable jumper
- short the jumper to enable USB function
- open the jumper to disconnect from I/O port
- VBAT selection jumper
- short the jumper to use system power supply
- open the jumper to connect the VBAT to external power, such as battery
- VREF selection jumper
- short the jumper to connect VREF+ to VCC
- open the jumper to connect VREF+ to other custom pin via jumper wire
Photos
Note:

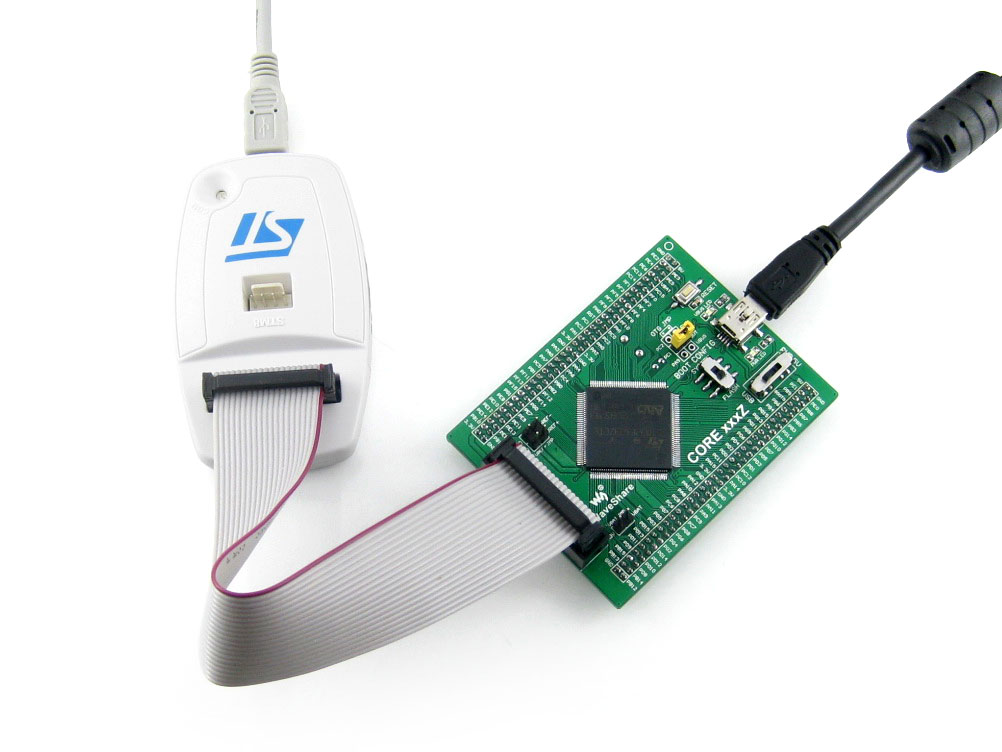

Core103Z provides JTAG/SWD debugging interface, yet does NOT integrate any debugging function, a debugger is required.
Mother board and programmer/debugger in the photos are NOT included in the price.
JTAG/SWD Interfaces
The figure 1, figure 2 shows the header pinout of JTAG, SWD interface respectively
![JTAG Header Pinout](/img/devkit/general/ARM_Interface_JTAG_250.jpg)
![SWD Header Pinout](/img/devkit/general/ARM_Interface_SWD_250.jpg)
Development Resources
Core103Z STM32 development board comes with a User Guide CD including development resources listed as below:
- Related software (KEIL etc.)
- Examples in C
- Schematic (PDF)
- Development documentations
Wiki: www.waveshare.com/wiki/Core103Z
Dimensions
Weight: 0.104 kg
