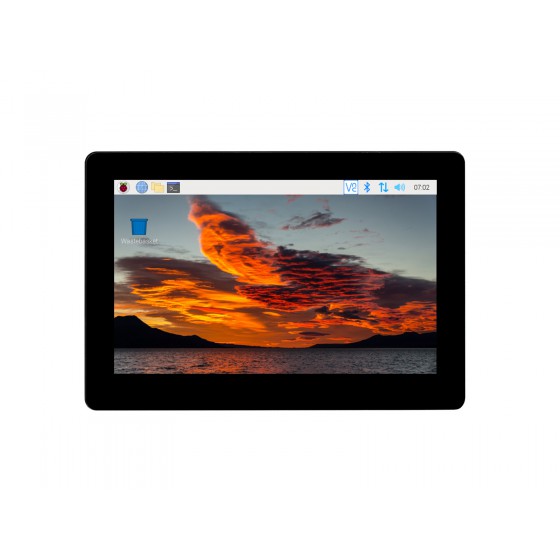

5″ Touch Screen Expansion for Raspberry Pi CM4, PoE Header, Gigabit Ethernet, 4K Output

SKU:22024
Part No.:CM4-DISP-BASE-5A
Brand:Waveshare

$95.99 Qty:

PriceQuantity
$95.192+
$94.793+
$94.634+

Related Products:

Raspberry Pi Compute Module 4, Options For RAM / EMMC/ Wireless

Raspberry Pi Compute Module 4 IO Board, a Development Platform for CM4

Metal Box (A) for Raspberry Pi Compute Module 4 IO Board, with Cooling Fan

Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4

Dual Gigabit Ethernet 5G/4G Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), Metal Case, with Cooling Fan

Raspberry Pi Compute Module 4 IO Board With PoE Feature, for all Variants of CM4

PoE Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling Fan

Raspberry Pi Compute Module 4 IO Board With PoE Feature (Type B), for all Variants of CM4

PoE Mini-Computer (Type B) Based on Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling Fan

Compute Module 4 Industrial IoT Base Board, for all Variants of CM4

Industrial IoT Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), PoE, 5G/4G, Metal Case, Cooling Fan

Binocular Camera Base Board Designed for Raspberry Pi Compute Module 4, Optional Interface Expander

Dual ETH Mini-Computer For Raspberry Pi Compute Module 4(NOT Included), Gigabit Ethernet, 4CH Isolated RS485

PoE UPS Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4, Gigabit Ethernet, Dual HDMI, Quad USB2.0

Dual ETH Quad RS485 Base Board (B) for Raspberry Pi Compute Module 4, Gigabit Ethernet, 4CH Isolated RS485

Nano Base Board (A) for Raspberry Pi Compute Module 4, Same Size as the CM4

WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot

Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as the CM4

Nano Base Board (C) for Raspberry Pi Compute Module 4, Same Size as the CM4, Onboard 8MP Camera

Arduino Compatible Base Board For Raspberry Pi Compute Module 4, HDMI, USB, M.2 Slot

2.8″ Touch Screen Expansion For Raspberry Pi Compute Module 4, Optical Bonding Display, Optional Interface Expander

7″ Touch Screen All-In-One Kit Designed for Raspberry Pi CM4, 5MP Camera, Aluminum Case

Raspberry Pi Compute Module 4 Dev Kit, with Official IO Board and Optional 7

Raspberry Pi Compute Module 4 Dev Kit, with Waveshare PoE Board and Optional 7

Raspberry Pi Compute Module 4 Antenna Kit, Certified for Use with CM4

Compatible Antenna for Raspberry Pi Compute Module 4 CM4, 2.4G/5G WiFi

Interface Protection Adapter Board For Raspberry Pi Compute Module 4 Series, Physical Protection For Frequent Plugging And Unplugging Of CM4

Description
Package Content

Details

5″ touch screen expansion for Raspberry Pi Compute Module 4, PoE header, Gigabit Ethernet, 4K output

5″ touch screen expansion board

Designed for Raspberry Pi Compute Module 4

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Networking	Gigabit Ethernet RJ45 connector
Networking	M.2 M KEY, supports NVME SSD
PoE	PoE header (additional PoE HAT is required to enable PoE feature)
USB	USB 2.0 × 4
Display	5″ screen, 800 × 480 pixels, 5-point capacitive touch
Camera	MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)
Video	HDMI, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
Storage	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header	allows speed adjustment and measurement, 5V / 12V
Power input	5V
Dimensions	127.7 × 87.45mm

5″ · HD display

5″ 800 × 480 pixels display, clear details

IPS · natural color

wide viewing angle, fast response, precise and natural color
no ripple on touch, better touch experience

4K output to external display

supports 4K (3840*2160) 30fps output via HDMI port
fully releasing the vision potentiality

5-point capacitive 「gentle」 touch

up to 5-point* capacitive touch screen
just gently touch it without any force, that is "capacitive"

* the actual touch points depend on the software system

Slide to adjust the brightness

the backlight brightness is adjustable by software for different scenarios
more power saving for the night or battery-powered projects

Love it, cool it

onboard fan header with speed adjustment and measurement support
compatible with 5V/12V cooling fans

* for reference only, the CM4, cooling fan, and M.2 SSD are NOT included.

More details

M.2 slot
supports M.2 M-key SSD

4x USB 2.0
adequate connectors, for more USB devices as you like

Gigabit Ethernet
RJ45 Gigabit Ethernet connection, say goodbye to the snail

Dual MIPI CSI-2 ports
allows connecting single camera or binocular cameras with different pixels

Interface introduction

Application Example

Suitable for Raspberry Pi applications or industrial scenarios requiring multi-function peripherals

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/CM4-DISP-BASE-5A

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

What's the differences

CM4 Base Board	Interface count and specifications
CM4 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G support RS232 RS485 ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232 RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
