Description

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic's ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

Key Features

• 5 V power supplied by a USB connector
• USB 2.0 full speed compatible interface
• USB standard A to mini B cable
• SWIM specific features
  • 1.65 V to 5.5 V application voltage supported on SWIM interface
  • SWIM low-speed and high-speed modes supported
  • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
  • SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
  • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
• JTAG specific features
  • 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
  • JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
• Direct firmware update feature supported (DFU)
• Status LED which blinks during communication with the PC
• Operating temperature 0 to 50 °C

Photos

ST-LINK/V2 Back View

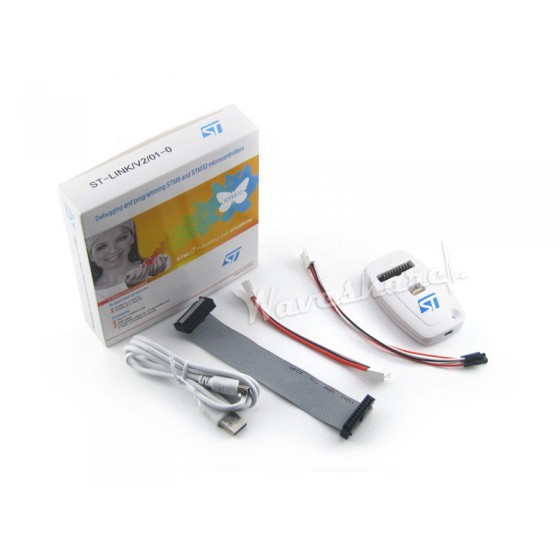

Cables comes with ST-LINK/V2

Application Example

Connecting the PC and STM8/STM32 application board through ST-LINK/V2 to establish hardware connection:

Supported Devices

Microcontrollers supported by STVP release 3.2.8:

SW DRIVERS

While connecting the ST-LINK/V2 to the computer through USB interface, the USB driver is required and should be installed correctly first.

Click on the link below to download:

ST-LINK/V2 USB driver for Windows 7, Vista and XP

Connection with STM8 applications

The ST-LINK/V2 should be connected to the STM8 application via the SWIM cable. Two SWIM cables are delivered with the product:

• SWIM flat ribbon with a standard ERNI connector at one end and a 4-pin connector at the other end
• SWIM flat ribbon ended with a 4-pin, 2.54 mm, low-cost connector on two sides

Figure 1. ST-LINK/V2 SWIM header pinout

Figure 2. Connecting with STM8 application board

Connection with STM32 applications

For STM32 developments the ST-LINK/V2 must be connected to the application using the standard 20-pin female-female JTAG flat ribbon provided.

Figure 3. Debugging connector layout on ST-LINK/V2 and flat cable

Figure 4. Connecting with STM32 application board

ST-LINK/V2 Status

The LED labeled 'COM' on top of the ST-LINK/V2 shows the ST-LINK/V2 status (whatever the connection type). When the:

• LED is blinking RED: the first USB enumeration with the PC is taking place. If it keeps blinking RED, maybe the USB driver is NOT found.
• LED is RED: communication between ST-LINK/V2 and the PC is established (end of enumeration).
• LED is blinking GREEN/RED: data are being exchanged between the target and the PC.
• LED is GREEN: the last communication has been successful.
• LED is ORANGE: ST-LINK/V2 communication with the target has failed.
