Details
Low-Profile ICE Tower Cooling Fan for Raspberry Pi 4B/3B+/3B, 5mm Copper Tube, Colorful LED
We also provide this cooling fan together with a compatible metal case, see PI4-CASE-METAL
Specifications
| Supported Pi | Raspberry Pi 4B/3B+/3B |
|---|---|
| Power supply | DC 5V input (can be powered from Raspberry Pi) |
| structure | ICE Tower-style, 5mm copper tube super heat dissipation |
| rated power | 0.4W @5V, 0.08A |
| Fan | Powerful RGB colorful LED fan (1x transparent fan, 1x spare black fan) |
Version upgrade

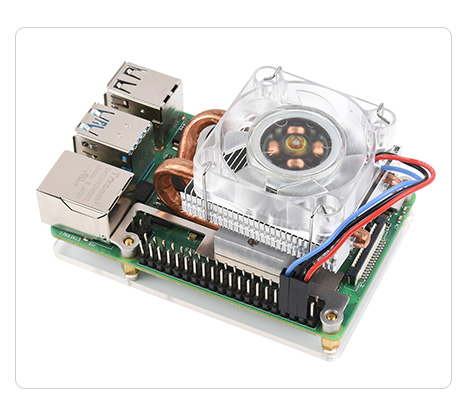

Old Version
2-wire cooling fan

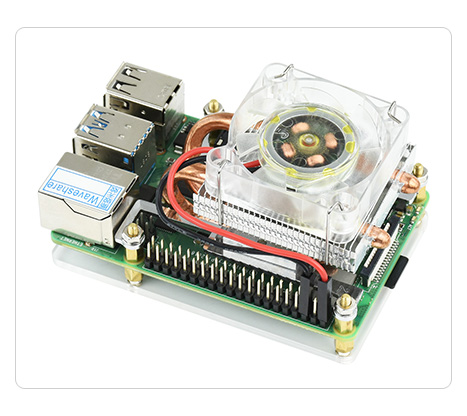

New version
3-wire cooling fan

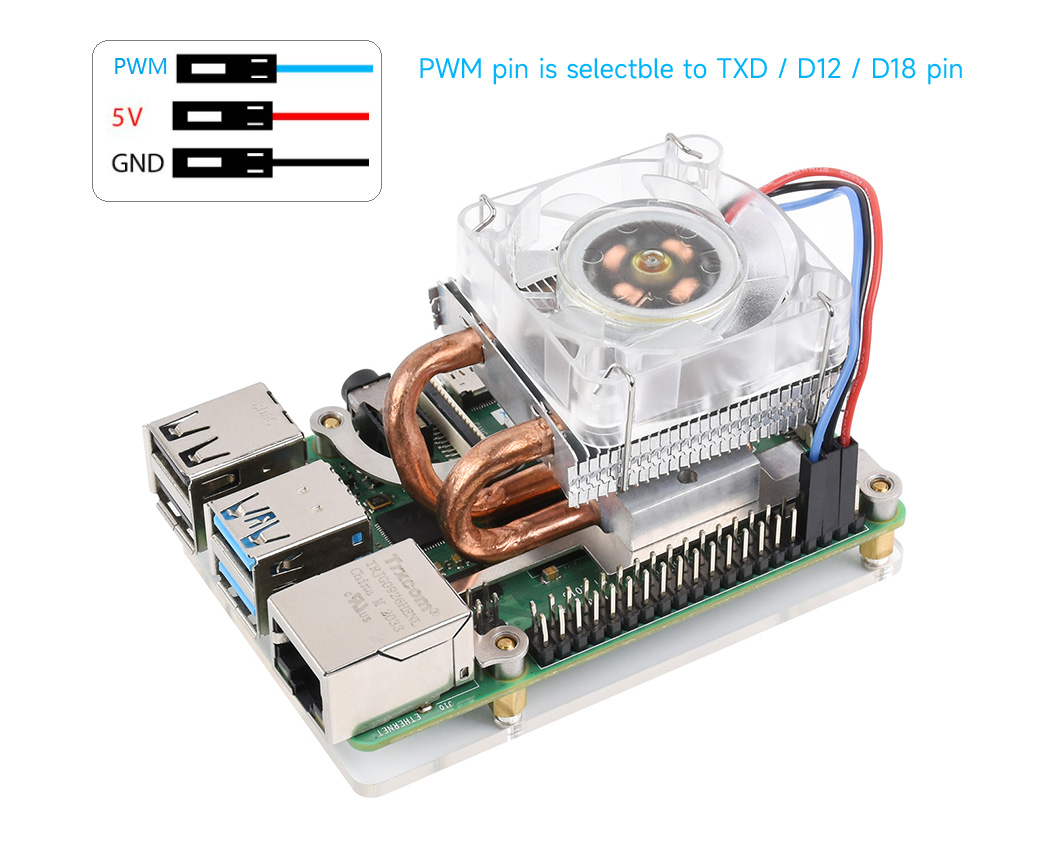

Add PWM speed control pin
More efficient
large area cooling fins and directly-contacted copper tube, super heat dissipation
reducing the temperature of the Raspberry Pi from 80℃ to 40℃ while overclocking
Colorful LED fan
Color LED fan with automatic color change, make it more dazzling and gorgeous
More silent
rated power 0.4W @5V, 0.08A, elaborately tuned fan
lower noise, higher performance
Easy to setup
just fixing some screws in a few steps, everything is done

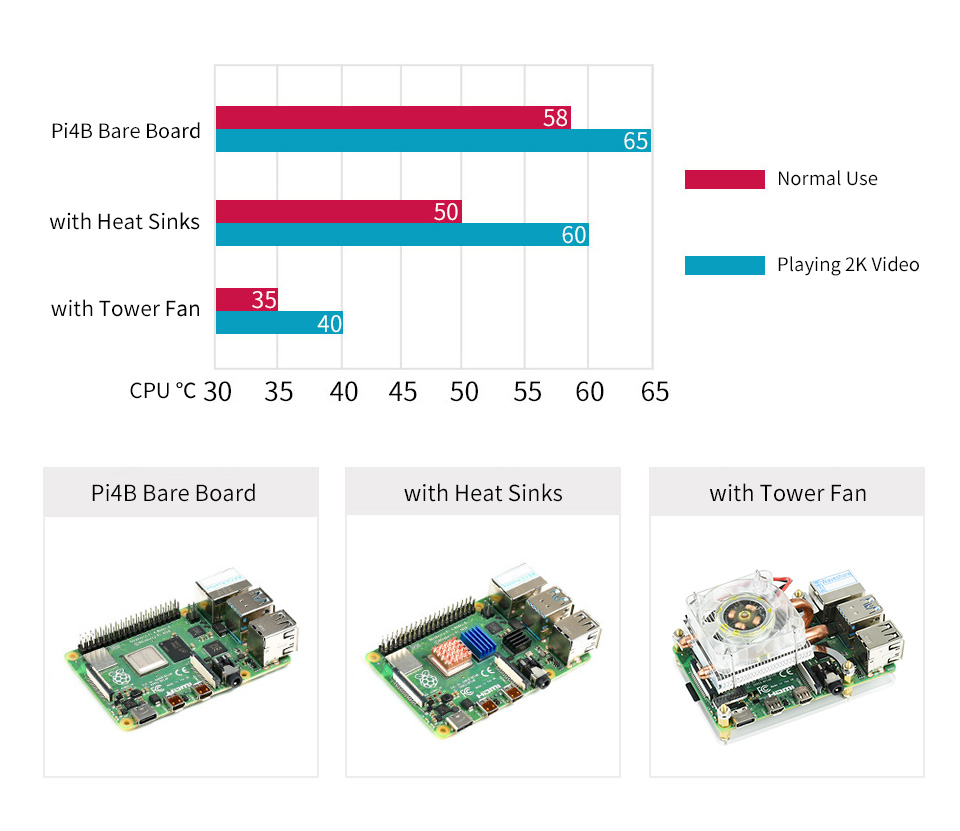

Raspberry Pi 4B Cooling Solution Comparing
Outline Dimensions
Weight: 0.137 kg

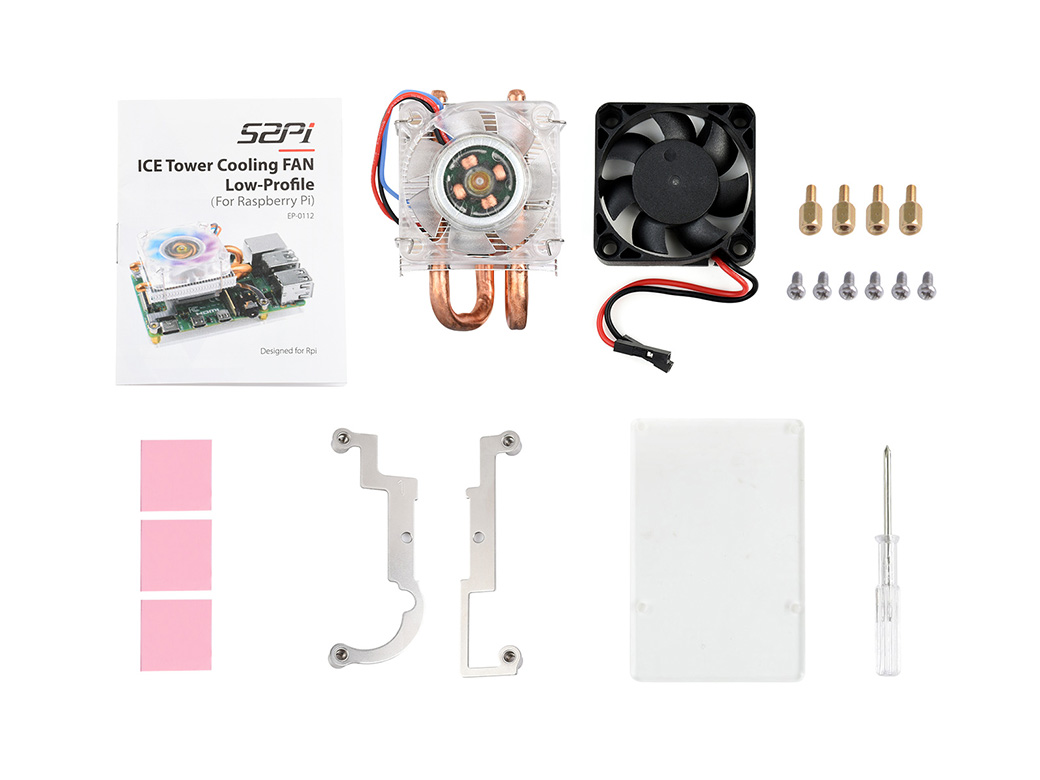

Quick Overview
- ICE Tower Fan V2 for Pi x1
