- Description
Details
Converts 5G network into Gigabit Ethernet, USB 3.1, and WiFi 6
5G SA and NSA support, global multiple frequency band, small size, plug & play
Suitability for applications where high speed 5G network access are required, like: AI robot/drone, industrial IoT, outdoor live streaming, automotive devices...
- Qualcomm snapdragon X55 platform, multi band multi frequency support, applicable for countries and regions like China, Japan, South Korea, Europe, the Middle East, etc.
- Supports 5G SA or NSA networking, backward compatible with 4G/3G network, automatically switching between 3G/4G/5G, meets mobile requirement
- Supports WiFi 6, up to 1.8Gbps downlink speed, allows WiFi 2.4G and 5G concurrent connections
- Gigabit Ethernet port and USB3.1 Type-C port, flexible and reliable
- Auto startup and dial-up on power-up, requires no extra configuration, plug & play
- Supports software and hardware watchdog for auto recovery on failure, double guarantees, more stable operation
- Provides friendly webpage console, for configurations like network and security, easy to use
- Comes with mounting feet, can be fixed by screws or adhesive tape
- Automotive grade Ethernet port, keeps reliable and stable operation even on vibration environment
- Embedded cooling design, allows properly operating under -30℃ ~ 70℃ temperature
| IC | 5G | Qualcomm SDX55 |
|---|---|---|
| WiFi 6 | Qualcomm QCA6391 | |
| Dimensions | 125 × 78 × 27mm | |
| Frequency band | 5G NR Sub-6G | N1/N3/N28/N40/N41/N77/N78/N79 |
| LTE-FDD | B1/B3/B5/B7/B8/B18/B19/B20/B28 | |
| LTE-TDD | B34/B38/B39/B40/B41/B42 | |
| WCDMA | B1/B3/B5/B8 | |
| 5G speed | Downlink | up to 3.3Gbps |
| Uplink | up to 450Mbp | |
| WiFi | Supports WiFi 6, 2.4GHz & 5GHz concurrent connections, WiFi 2×2 MIMO, 802.11 a/b/g/n/ac/ax |
|
| Max connections | 32 | |
| Hardware | Storage/Memory | 4Gb NAND + 4Gb LPDDR4 |
| Operating voltage | DC 8~16V, 12V (default) | |
| Ethernet | 10/100/1000 Base-T automotive grade connector | |
| SIM card | 2FF standard SIM Card slot × 1, with cover | |
| Embedded antenna | LTE/NR Antenna × 6, WiFi × 2 | |
| USB | USB3.1 Type-C | |
| Other | hardware watchdog | |
| Software | Webpage | webpage console |
| APN | Global auto APN | |
| Upgrade | FOTA & TR069 & Local | |
| SMS | supports sending/receiving messages | |
| Other | Firewalls / Port forwarding / DHCP server / SNTP / IPV4 / IPV6 | |
| Environment condition | Extended temperature | -30℃ to 70℃ |
| Storage temperature | -40℃ to +85℃ | |
| 5G Certificate | CTA/CCC | |
applicable for most of the countries and regions
Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions including China, Europe, the Middle East, South America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), based on 5G NR/LTE-FDD/LET-TDD/HSPA+ cellular network
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.
faster speed, lower latency
Incorporates Qualcomm the next generation WiFi 6 AP chip, with 2×2 MIMO, supports new technologies including uplink/downlink MU-MIMO, OFDMA, TWT (Target Wake Time), BSS Coloring, and so on, provides up to 1.8Gbps downlink speed, allows WiFi 2.4G and 5G concurrent connections, allows up to 32x user connections.
Gigabit Ethernet port & USB 3.1 Type-C port
Metallic shielding around the Ethernet port to prevent electromagnet interference, there are also metal elastic clip on the Ethernet connector for better fixing, ensuring reliable and stable operation even under vibration environment like automotive devices. Provides USB 3.1 Type-C port, up to 10Gbps physical layer data rate, suitable for high speed 5G products.
Just insert a SIM card to enable high speed 5G communication, needs no configuration
Provides webpage console for displaying network parameters and configuring network/security related settings
Embedded multi safety protections
supports hardware and software watchdog for auto recovery on failure
double guarantees, more stable operation
Pilotless driving and real-time remote control based on 5G network. It is possible to send command to the vehicle on emergency through 5G high speed network, suck as braking or turning direction, to fast take over control of the vehicle.
Connecting industrial AGV robots via 5G network, to get through steps including design, purchase, storage, logistics, makes the manufacture to be flatten, customized, and intelligent, achieves functions like data sharing, agile interconnection, cloud-based application, and intelligent strategic decision, plays an important supporting role on applications like storage management, industrial control, logistics tracking, and flexible manufacturing.
Due to features like high speed, low latency, and high precision, 5G transmission has unparalleled advantage over 4G/3G on drone field. The use of drones on different fields will be speed up on 5G era, such as: air logistics, emergency rescue, data collection, and more...
5G network enable more clear video effect for scenes like adventure travel, outdoor events live streaming. Compared to previous 4G network, its advantages of high speed, low latency will prevent transmission lag or system crashing, thus improving live streaming experience.
Enhanced Gigabit Ethernet port and WiFi 6 connectivity, ensures the stable operation of Ethernet port even under automotive vibration environment, providing high speed and stable 5G network connections for both automotive devices and the passengers.
Remote auto controlling of industrial/agricultural equipments is easily achieved through the high speed 5G network. Remote control applications such as container loading procedure, or agriculture machines auto driving, have strong practical significance, and could be widely deployed to industry and agriculture, thus reducing worker intensity, and improving operating precision.
Quick Overview

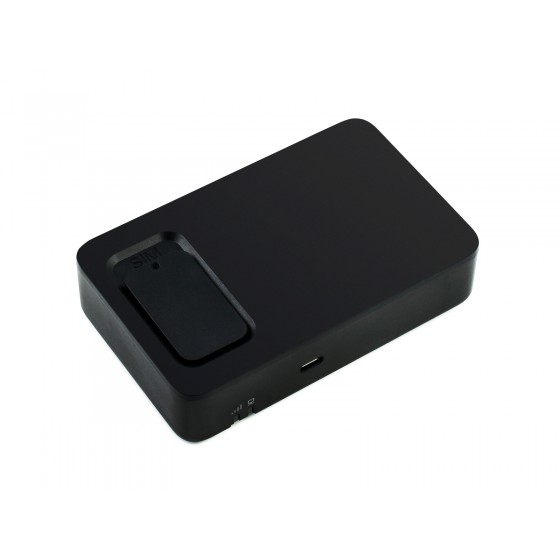

- 5G CPE BOX x1
- Adapter cable x1
- Ethernet cable 1.5m x1
- OPTIONS Power adapter 12V x1
