- Description
Details

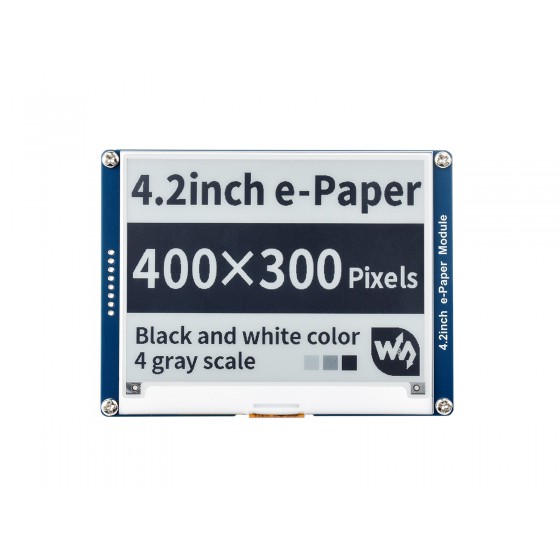

400x300, 4.2inch E-Ink display module, SPI interface
4.2″ e-Paper Module
partial refresh support, low power, wide viewing angle, paper-like effect
Ideal for price tags, shelf labels, industrial instruments...
- Size
4.2" - Resolution
400×300 - Viewing Angle
>170° - Display Color
Black and White - Grey Scale
4 - Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective - Refreshing
Partial Refresh Support
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| operating voltage | 3.3V/5V | display color | Black/White |
|---|---|---|---|
| interface | 3-wire SPI, 4-wire SPI | grey scale | 4 |
| outline dimensions | 103.0 × 78.5mm | full refresh time | 5s |
| display size | 84.8 × 63.6mm | Fast Refresh time | 1s/1.5s* |
| DOT PITCH | 0.212 × 0.212mm | Partial refresh time | 0.4s |
| viewing angle | >170° | refresh power | 26.4mW(typ.) |
| RESOLUTION | 400 × 300 pixels | standby current | <0.01uA (almost none) |
* Fast refresh function is only available in V2 version
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Onboard SPI control interface
for use with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
| VCC | 3.3V/5V |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output |
Onboard voltage translator
compatible with 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Product show
Outline dimensions
Product Certification
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh1 | Pi Head-er2 | Flexi-ble | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper Module | black, white | 2 | 128×80 | 21.76 × 14.00 | 42.0 × 27.0 | 2 | √ | SPI | ||
| 1.54inch e-Paper Module | black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 2 | √ | SPI | ||
| 1.54inch e-Paper Module (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 14 | SPI | |||
| 1.54inch e-Paper Module (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 48.0 × 33.0 | 27 | SPI | |||
| 1.64inch e-Paper Module (G) | red, yellow, black, white | 2 | 168×168 | 29.568 × 29.568 | 47 × 38 | 12 | SPI | |||
| 2.13inch e-Paper HAT | black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 2 | √ | √ | SPI | |
| 2.13inch e-Paper HAT+ | black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.5 | 2 | √ | √ | SPI | |
| 2.13inch e-Paper HAT (B) | red, black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 15 | √ | SPI | ||
| 2.13inch e-Paper HAT (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.70 | 65.0 × 30.2 | 15 | √ | SPI | ||
| 2.13inch e-Paper HAT (D) | black, white | 2 | 212×104 | 48.55 × 23.70 | 59.2 × 29.2 | 2 | √ | √ | √ | SPI |
| 2.13inch e-Paper HAT (G) | red, yellow, black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 25 | √ | SPI | ||
| 2.13inch Touch e-Paper HAT | black, white | 2 | 250×122 | 48.55 × 23.70 | 69.15 × 38.90 | 2 | √ | √ | SPI | |
| 2.13inch Touch e-Paper HAT (with case) | black, white | 2 | 250×122 | 48.55 × 23.70 | 72.20 × 41.90 | 2 | √ | √ | SPI | |
| 2.15inch e-Paper HAT+ (B) | red, black, white | 2 | 296×160 | 48.10 × 26.00 | 65.0 × 34.0 | 23 | √ | SPI | ||
| 2.15inch e-Paper HAT+ (G) | red, yellow, black, white | 2 | 296×160 | 48.10 × 26.00 | 65.0 × 34.0 | 20 | √ | SPI | ||
| 2.36inch e-Paper Module (G) | red, yellow, black, white | 2 | 296×168 | 52.096 × 29.568 | 69.5 × 38.5 | 12 | SPI | |||
| 2.66inch e-Paper Module | black, white | 2 | 296×152 | 30.704 × 60.088 | 37.0 × 83.5 | 6 | √ | SPI | ||
| 2.66inch e-Paper Module (B) | red, black, white | 2 | 296×152 | 30.704 × 60.088 | 37.0 × 83.5 | 15 | SPI | |||
| 2.66inch e-Paper Module (G) | red, yellow, black, white | 2 | 360×184 | 60.05 × 30.69 | 85.0 × 38.5 | 26 | SPI | |||
| 2.7inch e-Paper HAT | black, white | 4 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 6 | √ | √ | SPI | |
| 2.7inch e-Paper HAT (B) | red, black, white | 2 | 264×176 | 57.288 × 38.192 | 73.5 × 56.0 | 15 | √ | SPI | ||
| 2.9inch e-Paper Module | black, white | 4 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 3 | √ | SPI | ||
| 2.9inch e-Paper Module (B) | red, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | |||
| 2.9inch e-Paper Module (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | |||
| 2.9inch e-Paper HAT (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.0 × 36.7 | 2 | √ | √ | √ | SPI |
| 2.9inch Touch e-Paper HAT | black, white | 4 | 296×128 | 66.89 × 29.05 | 89.10 × 42.70 | 3 | √ | √ | SPI | |
| 3inch e-Paper Module (G) | red, yellow, black, white | 2 | 400×168 | 70.4 × 29.568 | 88.5 × 41 | 12 | SPI | |||
| 3.52inch e-Paper HAT | black, white | 2 | 360×240 | 74.51 × 49.67 | 86.5 × 57 | 1.5 | √ | SPI | ||
| 3.52inch e-Paper HAT (B) | red, black, white | 2 | 360×240 | 74.51 × 49.67 | 86.5 × 57 | 16 | √ | SPI | ||
| 3.7inch e-Paper HAT | black, white | 4 | 480×280 | 47.32 × 81.12 | 58.0 × 96.5 | 3 | √ | √ | SPI | |
| 4inch e-Paper HAT+ (E) | E6 full color | 2 | 600×400 | 84.6 × 56.40 | 101.00 × 68.00 | 19 | √ | SPI | ||
| 4.01inch e-Paper HAT (F) | 7-Color | 2 | 640×400 | 86.40 × 54.00 | 98.5 × 70.0 | 30 | √ | SPI | ||
| 4.2inch e-Paper Module | black, white | 4 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 5 | √ | SPI | ||
| 4.2inch e-Paper Module (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 15 | SPI | |||
| 4.26inch e-Paper HAT | black, white | 4 | 800×480 | 92.80 × 55.68 | 107.0 × 64.0 | 4 | √ | √ | SPI | |
| 4.3inch e-Paper UART Module | black, white | 4 | 800×600 | 88.00 × 66.00 | 118.0 × 75.0 | 1.5 | UART | |||
| 4.37inch e-Paper Module (G) | red, yellow, black, white | 2 | 512×368 | 90.11 × 64.77 | 101.5 × 81.5 | 14 | SPI | |||
| 5.65inch e-Paper Module (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 138.5 × 100.5 | <35 | SPI | |||
| 5.79inch e-Paper Module | black, white | 4 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 3.5 | √ | SPI | ||
| 5.79inch e-Paper Module (B) | red, black, white | 2 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 24 | SPI | |||
| 5.79inch e-Paper Module (G) | red, yellow, black, white | 2 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 21 | SPI | |||
| 5.83inch e-Paper HAT | black, white | 2 | 648×480 | 119.232 × 88.320 | 125.4 × 99.5 | 5 | √ | SPI | ||
| 5.83inch e-Paper HAT (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.4 × 99.5 | 20 | √ | SPI | ||
| 6inch e-Paper HAT | black, white | 16 | 800×600 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | √ | √ | USB/SPI/ I80 |
|
| 6inch HD e-Paper HAT | black, white | 16 | 1448×1072 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | √ | √ | USB/SPI/ I80 |
|
| 7.3inch E-Paper HAT (E) | E6 full color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 | 12 | √ | SPI | ||
| 7.3inch E-Paper HAT (F) | 7-Color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 | 35 | √ | SPI | ||
| 7.3inch E-Paper HAT (G) | red, yellow, black, white | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 | 16 | √ | SPI | ||
| 7.5inch e-Paper HAT | black, white | 4 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 4 | √ | √ | SPI | |
| 7.5inch HD e-Paper HAT | black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 5 | √ | SPI | ||
| 7.5inch e-Paper HAT (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 26 | √ | √ | SPI | |
| 7.5inch HD e-Paper HAT (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 21 | √ | SPI | ||
| 7.5inch e-Paper HAT (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | √ | SPI | ||
| 7.8inch e-Paper HAT | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.8 × 127.6 | <1 | √ | √ | USB/SPI/ I80 |
|
| 9.7inch e-Paper HAT | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.8×156.4 | <1 | √ | √ | USB/SPI/ I80 |
|
| 10.3inch e-Paper HAT | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 216.7 × 174.4 | <1 | √ | √ | USB/SPI/ I80 |
|
| 10.3inch e-Paper HAT (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.7 × 165.8 | <1 | √ | √ | √ | USB/SPI/ I80 |
| 10.3inch e-Paper HAT (G) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 225.70 × 183.40 | <1 | √ | √ | USB/SPI/ I80 |
|
| 12.48inch e-Paper Module | black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | <8 | √ | SPI | ||
| 12.48inch e-Paper Module (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | 37 | √ | SPI | ||
| 13.3inch e-Paper HAT | black, white | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 | <1 | √ | √ | USB/SPI/ I80 |
|
| 13.3inch e-Paper HAT (B) | red, black, white | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 | 22 | √ | √ | SPI | |
| 13.3inch e-Paper HAT (K) | black, white | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 | 5 | √ | √ | SPI |
- It usually takes about 0.3s for partial refresh
- Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Weight: 0.052 kg
Quick Overview
- 4.2inch e-Paper Module x1
- PH2.0 20cm 8Pin x1
