- Description
Details

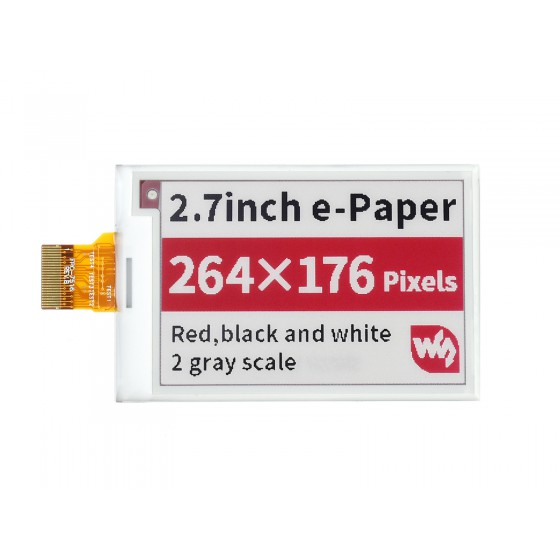

2.7inch e-Paper (B) E-Ink Raw Display, 264×176 pixels, Red / Black / White Three-Color, SPI Interface, without PCB
2.7" e-Paper (B)
low power, wide viewing angle, paper-like displaying without electricity
Ideal for price tags, shelf labels, industrial instruments...
- Size
2.7" - Resolution
264×176 - Viewing Angle
>170° - Display Color
Red / Black / White - Grey Scale
2 - Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| operating voltage | 3.3V | display color | red, black, white |
|---|---|---|---|
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | 70.42 × 45.8 × 0.98mm | full refresh time | 15s |
| display size | 57.288 × 38.192mm | refresh power | 26.4mW (typ.) |
| dot pitch | 0.217 × 0.217mm | standby current | <0.01uA (almost none) |
| resolution | 264×176 pixels | viewing angle | >170° |
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Recommended
To fastly get started with this raw display, please consider the following driver boards:
- e-Paper Driver HAT (Universal)
- e-Paper Shield (Arduino/NUCLEO)
- e-Paper ESP8266 Driver Board (WiFi)
- e-Paper ESP32 Driver Board (WiFi / Bluetooth)
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh | Flexible | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper | black, white | 2 | 128×80 | 21.76 × 14.00 | 32.57 × 18.60 × 0.98 | 2 | √ | SPI | |
| 1.54inch e-Paper | black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 2 | √ | SPI | |
| 1.54inch e-Paper (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 14 | SPI | ||
| 1.54inch e-Paper (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 37.30 × 31.80 × 0.98 | 27 | SPI | ||
| 1.64inch e-Paper (G) | red, yellow, black, white | 2 | 168×168 | 29.568 × 29.568 | 45.5 × 36.4 × 0.91 | 12 | SPI | ||
| 2.13inch e-Paper | black, white | 2 | 250×122 | 48.55 × 23.71 | 59.20 × 29.20 × 1.05 | 2 | √ | SPI | |
| 2.13inch e-Paper (B) | red, black, white | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.70 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (D) | black, white | 2 | 212×104 | 48.55 × 23.70 | 59.20 × 29.20 × 0.30 | 2 | √ | √ | SPI |
| 2.13inch e-Paper (G) | red, yellow, black, white | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 1.00 | 25 | SPI | ||
| 2.15inch e-Paper (B) | red, black, white | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 23 | SPI | ||
| 2.15inch e-Paper (G) | red, yellow, black, white | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 20 | SPI | ||
| 2.36inch e-Paper (G) | red, yellow, black, white | 2 | 296×168 | 52.096 × 29.568 | 68.1 × 37.9 × 0.85 | 12 | SPI | ||
| 2.66inch e-Paper | black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 6 | √ | SPI | |
| 2.66inch e-Paper (B) | red, black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 15 | SPI | ||
| 2.66inch e-Paper (G) | red, yellow, black, white | 2 | 360×184 | 60.05 × 30.69 | 72.59 × 37.11 × 1.00 | 26 | SPI | ||
| 2.7inch e-Paper | black, white | 4 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 6 | √ | SPI | |
| 2.7inch e-Paper (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 15 | SPI | ||
| 2.9inch e-Paper | black, white | 4 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.05 | 3 | √ | SPI | |
| 2.9inch e-Paper (B) | red, black, white | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 1.20 | 14 | √ | SPI | |
| 2.9inch e-Paper (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.18 | 15 | SPI | ||
| 2.9inch e-Paper (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 0.34 | 2 | √ | √ | SPI |
| 3inch e-Paper (G) | red, yellow, black, white | 2 | 400×168 | 70.4 × 29.568 | 86.4 × 39.2 × 0.85 | 12 | SPI | ||
| 3.52inch e-Paper | black, white | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 1.18 | 1.5 | SPI | ||
| 3.52inch e-Paper (B) | red, black, white | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 0.85 | 16 | SPI | ||
| 3.7inch e-Paper | black, white | 4 | 480×280 | 47.32 × 81.12 | 54.90 × 93.30 × 0.78 | 3 | √ | SPI | |
| 4inch e-Paper (E) | E6 full color | 2 | 600×400 | 84.6 × 56.4 | 99.00 × 66.00 × 0.85 | 19 | SPI | ||
| 4.01inch e-Paper (F) | 7-Color | 2 | 640×400 | 86.40 × 54.00 | 96.80 × 68.70 × 0.91 | 30 | SPI | ||
| 4.2inch e-Paper | black, white | 4 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.18 | 5 | √ | SPI | |
| 4.2inch e-Paper (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.05 | 15 | SPI | ||
| 4.26inch e-Paper | black, white | 4 | 800×480 | 92.8 × 55.68 | 129.33 × 62.37 × 0.93 | 4 | √ | SPI | |
| 4.37inch e-Paper (G) | red, yellow, black, white | 2 | 512×368 | 90.11 × 64.77 | 99.5 × 79.5 × 0.85 | 14 | SPI | ||
| 5.65inch e-Paper (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 125.4 × 99.5 × 0.91 | <35 | SPI | ||
| 5.79inch e-Paper | black, white | 4 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 3.5 | √ | SPI | |
| 5.79inch e-Paper (B) | red, black, white | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 24 | SPI | ||
| 5.79inch e-Paper (G) | red, yellow, black, white | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 21 | SPI | ||
| 5.83inch e-Paper | black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 5 | SPI | ||
| 5.83inch e-Paper (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 20 | SPI | ||
| 6inch HD e-Paper | black, white | 16 | 1448×1072 | 122.40 × 90.60 | 138.40 × 101.80 × 1.01 | <1 | √ | Parallel port | |
| 7.3inch e-Paper (E) | E6 full color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 12 | SPI | ||
| 7.3inch e-Paper (F) | 7-Color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 35 | SPI | ||
| 7.3inch e-Paper (G) | red, yellow, black, white | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 16 | SPI | ||
| 7.5inch e-Paper | black, white | 4 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 4 | √ | SPI | |
| 7.5inch e-Paper (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 26 | √ | SPI | |
| 7.5inch e-Paper (G) | black, white | 2 | 800×480 | 163.20 × 97.92 | 177.20 × 118.20 × 2.00 | 5 | √ | SPI | |
| 7.5inch HD e-Paper (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.20 × 111.20 × 1.25 | 21 | SPI | ||
| 7.5inch e-Paper (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 16 | SPI | ||
| 7.8inch e-Paper | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.80 × 127.60 × 0.78 | <1 | √ | Parallel port | |
| 9.7inch e-Paper | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.80 × 156.425 × 1.15 | <1 | √ | Parallel port | |
| 10.3inch e-Paper | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 216.70 × 174.40 × 0.78 | <1 | √ | Parallel port | |
| 10.3inch e-Paper (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.70 × 165.80 × 0.647 | <1 | √ | √ | Parallel port |
| 10.3inch e-Paper (G) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 225.70 × 183.40 × 2.00 | <1 | √ | Parallel port | |
| 12.48inch e-Paper | black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.50 × 211.00 × 0.30 | <8 | SPI | ||
| 12.48inch e-Paper (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.40 × 211.00 × 1.20 | 37 | SPI | ||
| 13.3inch e-Paper | black, white | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 × 0.78 | <1 | √ | Parallel port | |
| 13.3inch e-Paper (B) | red, black, white | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 22 | √ | SPI | |
| 13.3inch e-Paper (K) | black, white | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 5 | √ | SPI |
Weight: 0.008 kg
Quick Overview
This is a raw display, for easy testing and comparing, please consider the one with driver board: 2.7inch e-Paper HAT (B)
- 2.7inch e-Paper (B) x1
1
