- Description
Details
Description
The ST-LINK is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The SWIM and JTAG/SWD interface is used to communicate with the STM8 or STM32 microcontroller located on your own application board.
On the PC side, the USB full speed interface is used to communicate with:
- ST Visual Develop (STVD) or ST Visual Program (STVP) software from
STMicroelectronic's for the STM8, - ATOLLIC, IAR and KEIL Integrated Development Environments for the STM32.
Key Features
- 5 V power supplied by USB connector
- USB 2.0 full speed interface compatible
- USB standard A to micro cable provided
- SWIM specific features:
- 1.65 V to 5.5 V application voltage supported on SWIM interface
- SWIM low speed and high speed modes supported
- SWIM programming speed rate:
- 9.7 Kbytes/s in low speed
- 12.8 Kbytes/s in high speed
- SWIM cable for connection to an application with pin headers or 2.54 mm pitch connector
- JTAG/SWD specific features:
- 3 V to 3.6 V application voltage supported on JTAG/SWD interface and 5 V tolerant inputs
- JTAG/SWD cable provided for connection to a standard JTAG 20-pin pitch 2.54 mm connector
- Direct firmware update feature supported
- Status LED which blinks during communication with PC
- Operating temperature 0 to 50 °C
Release History
Since May-2016, ST-LINK New Revision has been released. Now it employs a micro USB connector.
Application Example
Connecting the PC and STM8/STM32 application board through a ST-LINK to establish hardware connection:
Supported Devices
Microcontrollers supported by STVP release 3.2.8:
| Product line | Microcontroller |
|---|---|
| STM32 | STM32F100xx, STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx, STM32F107xx, STM32F2xxx, STM32F4xxx, STM32L15xx6, STM32L15xx8,STM32L15xxB, STM32L151xC, STM32L151xD, STM32L152xC, STM32L152xD, STM32L162xD, STM32TS60, STM32W108C8, STM32W108xB, STM32W108xC, STM32W108xZ |
| STM8 | STM8AF51x, STM8AF52x, STM8AF61x, STM8AF62x,STM8AH51x, STM8AH61x, STM8S003K3, STM8S003F3, STM8S005C6, STM8S005K6, STM8S007C8, STM8S103xx, STM8S105xx, STM8S207xx, STM8S208xx, STM8S903F3, STM8S903K3, STM8L101xx, STM8L15x, STM8L16x, STM8TL52x4,STM8TL53x4 |
Connection with STM8 applications
The ST-LINK should be connected to the STM8 application via the SWIM separate-wires cable, which is delivered with the product.
As the SWIM separate-wires cable has independent connectors for all pins on one side, it is possible to connect the ST-LINK to an application board without a standard SWIM connector. On this flat ribbon all signals are referenced by a specific color and a label to ease the connection on target.
Figure 1. Standard SWIM header pinout
Figure 2. SWIM separate-wires cable connected on ST-LINK target connector even pins
Figure 3. Connected to a STM8 application board via SWIM separate-wires cable
Connection with STM32 applications
For STM32 developments the ST-LINK must be connected to the application using the standard 20-pin female-female JTAG flat ribbon provided.
Figure 4. Debugging connector layout on ST-LINK and flat cable
Figure 5. Connected to a STM32 application board
via 20-pin female-female JTAG flat ribbon
Downloads
Development resources:user manual, driver, software, etc.
Wiki:
www.waveshare.com/wiki/ST-LINK
Large Stocks
We keep large quantity of ST-LINK in stock, which makes it possible to ship the item with no delay!
Weight: 0.201 kg
Quick Overview

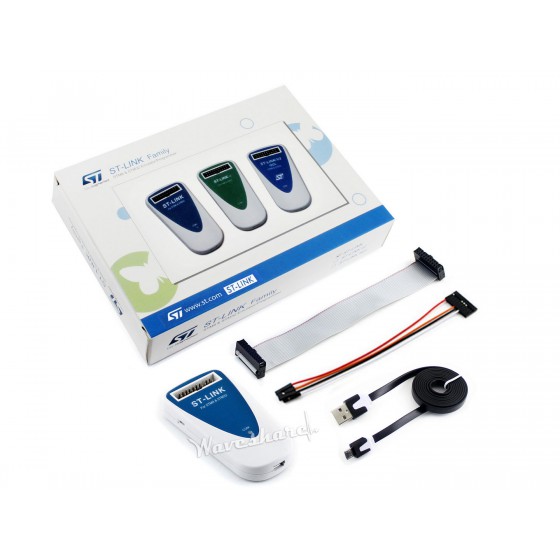

Package Contains
- ST-LINK × 1
- USB type A to micro cable × 1
- 20-pin JTAG/SWD flat ribbon × 1
- 4-pin SWIM separate-wires cable × 1

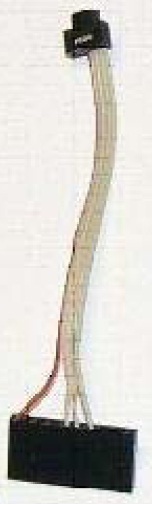

Note: SWIM flat ribbon with standard ERNI connector, which is mentioned in the official PDF, is NOT included.
