Overview

The Raspberry Pi 2 Model B is the second generation Raspberry Pi. It replaced the original Raspberry Pi 1 Model B+ in February 2015. Compared to the Raspberry Pi 1, it features:

• A 900MHz quad-core ARM Cortex-A7 CPU
• 1GB RAM
• Supports more OS, includes Windows 10

Features

1. Broadcom BCM2836 900MHz quad-core ARM Cortex-A7 CPU with VideoCore IV dual-core GPU
2. GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
3. GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
4. 1GB RAM
5. Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
6. 10/100 wired Ethernet
7. HDMI output
8. USB 2.0 interface x 4
9. 4-pole 3.5mm stereo audio jack with composite video output
10. Micro SD card slot
11. Powered by 5v micro USB
12. Camera connector
13. 40-pin 2.54mm expansion pinheader
14. Dimensions: 85mm x 56mm x 17mm

Note: Customers should install the case by themselves.

Development Resources

Wiki : www.waveshare.com/wiki/RPi2_B

1. Raspberry Pi 2 Model B x 1

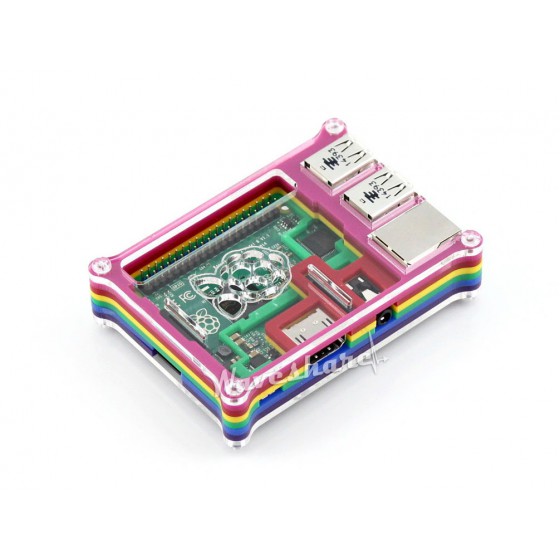

2. Rainbow Case B for RPi2 B × 1
