Details
Raspberry Pi 2 Model B + 7inch HDMI LCD (C) + Bicolor case + 8GB Micro SD card + Power Adapter
Overview
The Raspberry Pi 2 Model B is the second generation Raspberry Pi. It replaced the original Raspberry Pi 1 Model B+ in February 2015. Compared to the Raspberry Pi 1, it features:
- A 900MHz quad-core ARM Cortex-A7 CPU
- 1GB RAM
- Supports more OS, includes Windows 10
Features
- Broadcom BCM2836 900MHz quad-core ARM Cortex-A7 CPU with VideoCore IV dual-core GPU
- GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
- GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
- 1GB RAM
- Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
- 10/100 wired Ethernet
- HDMI output
- USB 2.0 interface x 4
- 4-pole 3.5mm stereo audio jack with composite video output
- Micro SD card slot
- Powered by 5v micro USB
- Camera connector
- 40-pin 2.54mm expansion pinheader
- Dimensions: 85mm x 56mm x 17mm
7inch HDMI LCD (C) Features
- 7inch IPS screen, 1024x600 hardware resolution
- Capacitive touch control
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Backlight can be turned off to lower power consumption
Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable
More info : 7inch HDMI LCD (C)
The Case
- Material : high quality bicolor Acrylic, black and white
- Comes with bottom holder, optional tilt angle, 45° or 60°
- Features mounting holes for Raspberry Pi B/A+/B+/2B/3B/3B+, Banana Pi, and BB Black
More info : Bicolor Case for 7inch LCD
Photos
Development Resources
Wiki : www.waveshare.com/wiki/RPi2_B_Package_F
Raspberry Pi 2 Model B Selection Guide
| Package Contents | Products | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Description | Acce. A | Package A | Acce. C | Package C | Acce. D | Package D | Acce. E | Package E | Acce. F | Package F |
| RPi2 B | Raspberry Pi 2 Model B | √ | √ | √ | √ | √ | |||||
| DVK512 | Expansion Board, provides expansion interfaces and onboard components | √ | √ | ||||||||
| 3.5inch RPi LCD (A) | 3.2inch touch screen LCD | √ | √ | ||||||||
| PCF8591 AD DA Board | 8-bit AD/DA module | √ | √ | ||||||||
| L3G4200D Board | Angular rate sensor | √ | √ | ||||||||
| LSM303DLHC Board | e-compass | √ | √ | ||||||||
| Mix Board | Buzzer, Joystick, Infrared Receiver, Temperature Sensor | √ | √ | ||||||||
| Logic Level Converter | 8ch Logic Level Bus Transceiver | √ | √ | ||||||||
| USB WIFI 150M RTL8188CUS | USB WIFI | √ | √ | ||||||||
| Micro SD Card 8GB | 8GB Miro SD Card, class 10 | √ | √ | √ | √ | √ | √ | ||||
| USB Camera 0307 | USB camera | √ | √ | ||||||||
| Mini Wireless Keyboard | Mini wireless keyboard with touchpad | √ | √ | ||||||||
| HDMI to VGA Convertor | For working with VGA monitors | √ | √ | ||||||||
| 5V 2A Power Adapter | Required while heavy-loaded | √ | √ | √ | √ | √ | √ | ||||
| ARPI600 | Raspberry Pi to Arduino | √ | √ | ||||||||
| Sensors Pack | Various sensors in one pack | √ | √ | ||||||||
| 5inch HDMI LCD (B) | 5inch HDMI interface touch screen LCD | √ | √ | ||||||||
| Bicolor Case for 5inch LCD Type B | Case and holder | √ | √ | ||||||||
| 7inch HDMI LCD (C) | 7inch HDMI interface touch screen LCD, high-definition | √ | √ | ||||||||
| Bicolor Case for 7inch LCD | Case and holder | √ | √ | ||||||||
Weight: 0.643 kg
Quick Overview
- Raspberry Pi 2 Model B x 1
- 7inch HDMI LCD (C) x 1
- HDMI cable x 1
- USB type A plug to micro B plug cable x 2
- RPi LCD screws pack (4pcs) x 1
- DVD × 1
- Bicolor Case for 7inch LCD × 1
- Screws Pack × 1

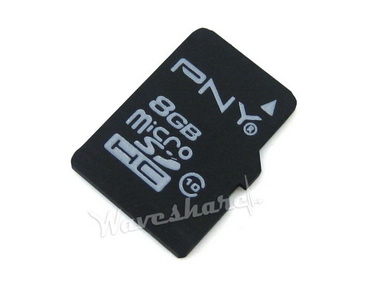

- Micro SD Card 8GB x 1
- Power Adapter US Standard 5V 2.5A USB Output x 1
- Micro SD Card Reader x 1 (Extra Free)
