Details

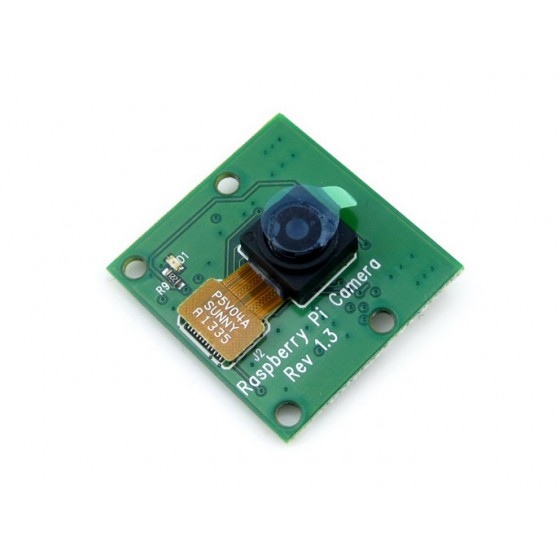

Original Raspberry Pi Camera Module, fixed-focus
Features
- Original Raspberry Pi Camera, supports all revisions of the Pi
- 5 megapixel OV5647 sensor in a fixed-focus module
- 2592 × 1944 still picture resolution
- Support 1080p30, 720p60 and 640x480p60/90 video record
- Dimension: 25mm x 24mm x 9mm
Photos
Downloads
Development resources: user manual, etc.Download: www.waveshare.com/wiki/RPi_Camera
OV5647 5MP Camera Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Adjustable Focus Distance | Angle of View (diagonal) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | √ | 60.6° | 32×32 |
| RPi Camera (E) | N/A | 2.8 | 3.21 | - | 69.8° | 25×24 |
| RPi Camera (F) | N/A | 2 | 3.6 | √ | 50° | 25×24 |
| RPi Camera (G) | integrated | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (H) | N/A | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (I) | integrated | 2 | 1.55 | √ | 185° | 32×32 |
| RPi Camera (M) | integrated | 2 | 0.87 | √ | 200° | 25×24 |
| RPi IR-CUT Camera | N/A | 2 | 3.6 | √ | 50° | 31×32 |
| RPi IR-CUT Camera (B) | N/A | 1.4 | 8 | √ | 40° | 31×32 |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | - | 69.8° | 60×11.5 |
| RPi FPC Camera | integrated | 2.8 | 3.21 | - | 69.8° | 300×16 |
| RPi FPC Camera (B) | N/A | 2.4 | 3.89 | - | 72.9° | 35×16×5 |
- Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
- Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).
Weight: 0.028 kg
Quick Overview
- RPi Camera × 1
- 15-pin FFC (opposite sides contact) × 1
