NUCLEO-F031K6 Description

The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller line in 32-pin packages, choosing from the various combinations of performance, power consumption and features.The Arduino™nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields.

The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

The STM32 Nucleo-32 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

NUCLEO-F031K6 Key Features

• STM32 microcontrollers in 32-pin packages
• extension with Arduino™nano connectivity
• mbed-enabled (http://mbed.org)
• on-board ST-LINK/V2-1 debugger/programmer
• USB reenumeration capability: three different interfaces supported on USB:
  • Virtual Com port
  • mass storage
  • debug port
• flexible board power supply:
  • USB VBUS
  • external source
• three LEDs:
  • USB communication (LD1), power LED (LD2), user LED (LD3)
• reset push button
• supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32, ...)

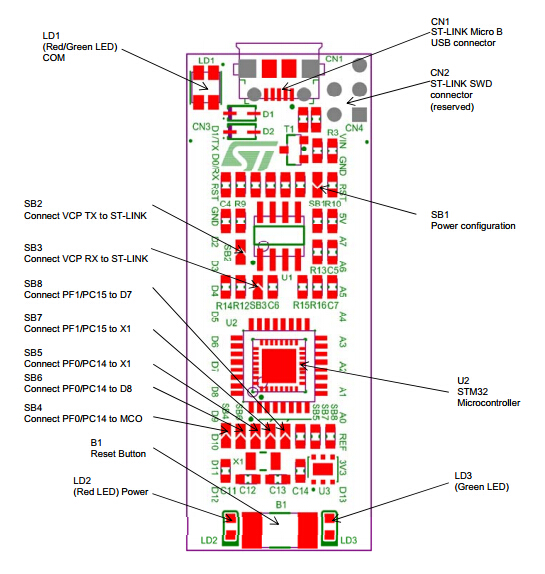

What's the NUCLEO-F031K6

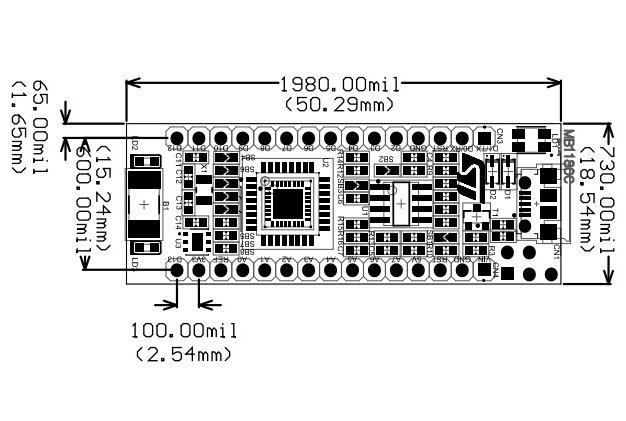

NUCLEO-F031K6 Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/NUCLEO-F031K6

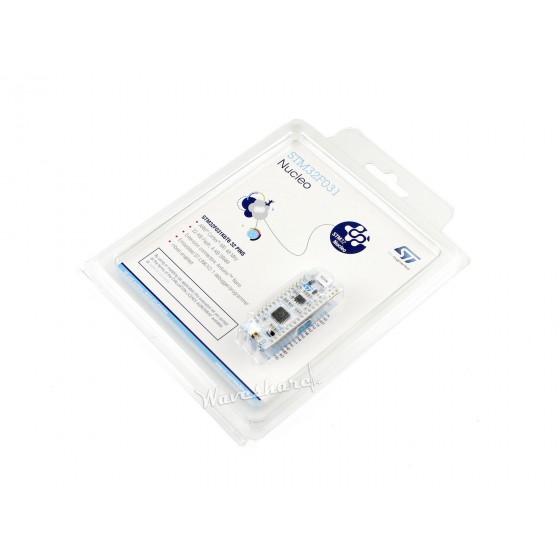

1. NUCLEO-F031K6 × 1
