Discontinued. Bulk purchase is still available, feel free to contact us.

Overview

The CM-AM335X is a CPU Module powered by the TI Cortex-A8 processor AM335X.

The CM-AM335X features 512MB DDR3, 4GB Nand Flash, power management chip TPS65910, Ethernet PHY LAN8710A, and all the unused pins of AM335X are accessible on the two 2 x 50PIN expansion headers.

What's on the CM-AM335X

1. TI AM335X
• 1-GHz Sitara™ ARM® Cortex®-A8 32-Bit RISC Processor
• NEON™ SIMD Coprocessor
• SGX530 3D Graphics Engine
• Programmable Real-Time Unit Subsystem
• 32KB of L1 Instruction and 32KB of Data Cache With Single-Error Detection (Parity)
• 256KB of L2 Cache With Error Correcting Code (ECC)
2. 512MB DDR3 SDRAM
3. 4GB eMMC Flash
4. TPS65910 power management chip
5. Power indicator
6. LAN8710A 10M/100M Ethernet PHY
7. Expansion headers : Two 2 x 50PIN, 1.27mm pitch

Photos

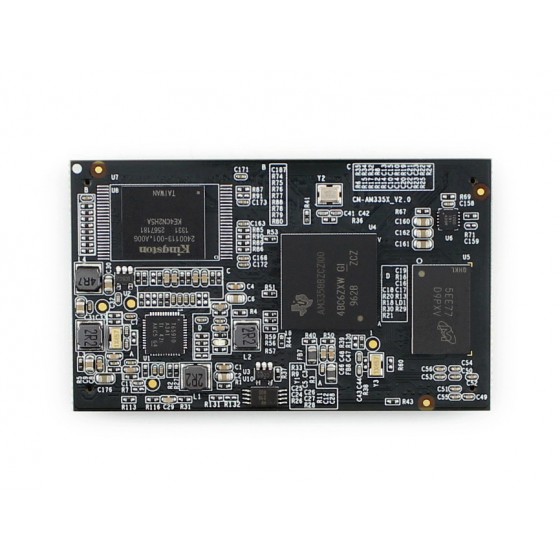

CPU Module CM-AM335X

CPU Module CM-AM335X

Base Board SIM-AM335X

Base Board SIM-AM335X

Connecting the CM-AM335X and SIM-AM335X

Connecting the CM-AM335X and SIM-AM335X

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/MarsBoard_AM335X
