Details
FPGA CPLD mother board, provides several I/O interfaces, supports various accessory boards
Overview
DVK601 is an FPGA CPLD mother board that features expansion connectors for connecting FPGA CPLD core board and accessory boards. DVK601 provides an easy way to set up FPGA CPLD development system.
What's On Board
![FPGA CPLD development board on board resource](/img/devkit/accBoard/DVK601/DVK601-intro.jpg)
- FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
- 8I/Os_1 interface, for connecting accessory boards/modules
- 8I/Os_2 interface, for connecting accessory boards/modules
- 8I/Os_3 interface, for connecting accessory boards/modules
- 8I/Os_4 interface, for connecting accessory boards/modules
- 16I/Os_1 interface, for connecting accessory boards/modules
- 16I/Os_2 interface, for connecting accessory boards/modules
- 32I/Os_1 interface, for connecting accessory boards/modules
- 32I/Os_2 interface, for connecting accessory boards/modules
All the I/O interfaces above:
- capable of being simulated as USART, I2C, SPI, PS/2, etc.
- capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.
- FPGA expansion connectors
- FPGA pins are accessible on expansion connectors
- for connecting SDRAM accessory board
- LCD interface, for connecting LCD22, LCD12864, LCD1602
- ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
- Buzzer
- Joystick: five positions
- Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
- Buzzer jumper
- Joystick jumper
- ONE-WIRE jumper
For jumpers 16-18:
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
The DVK601 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board. For instance, while connecting to Core3S250E, the '④ 8I/Os_3' and '⑤ 8I/Os_4' are Not-Connected.

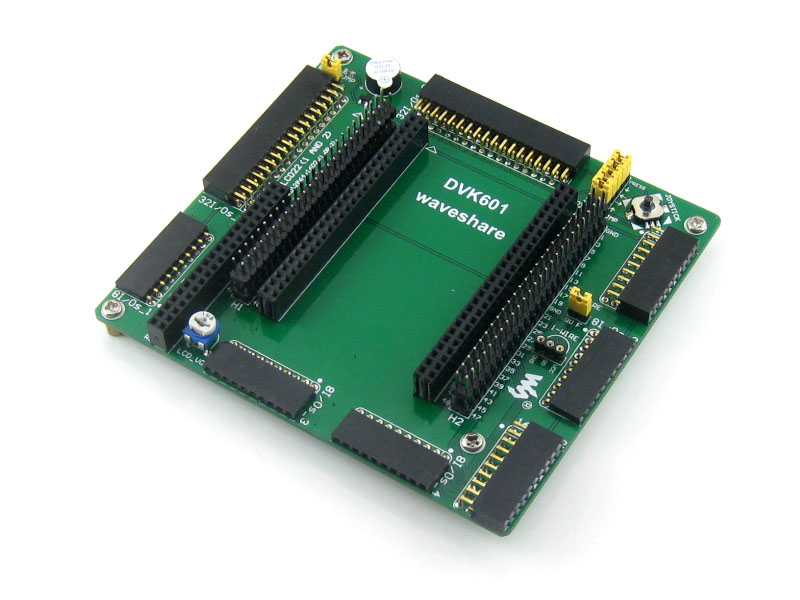

Photos
Note: core board and accessory boards in the photos are NOT included in the price.
Downloads
Development resources:schematic, etc.
Wiki: www.waveshare.com/wiki/DVK601
Weight: 0.092 kg
